PackageDO-214AA
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse P6SMB7.5A technical specifications.
General
| Package/Case | DO-214AA |
| Clamping Voltage | 11.3V |
| Diode Type | ZENER |
| Min Breakdown Voltage | 71.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Surge Current | 53A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 6.4V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 5.9A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 64.1V |
| RoHS Compliant | Yes |
| Series | P6SMB |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse P6SMB7.5A Datasheet
Download the complete datasheet for Littelfuse P6SMB7.5A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

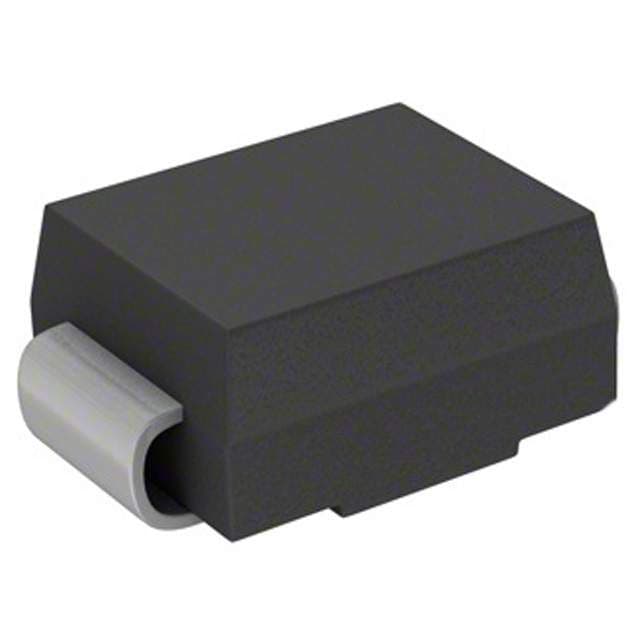

Product Images
