Littelfuse
S6025L
Silicon Controlled Rectifier, 25A I(T)RMS, 25000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element, TO-220AB, ROHS COMPLIANT, PLASTIC, TO-220L, 3 PIN
PackageTO-220
Current Rating25A
MountingThrough Hole
Quick Jump:
Technical Specifications
Littelfuse S6025L technical specifications.
General
Package/Case
TO-220
Current Rating
25A
Height
9.4mm
Hold Current
50mA
Lead Free
Lead Free
Length
10.67mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Mount
Through Hole
Number of Contacts
3
Package Quantity
500
Packaging
Bulk
Primary Type
STANDARD
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
25A
RoHS Compliant
Yes
DC Rated Voltage
600V
Weight
0.08113oz
Width
4.78mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse S6025L Datasheet
Download the complete datasheet for Littelfuse S6025L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

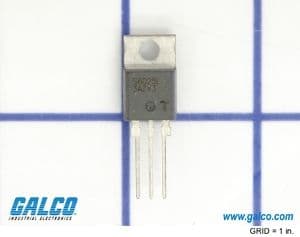

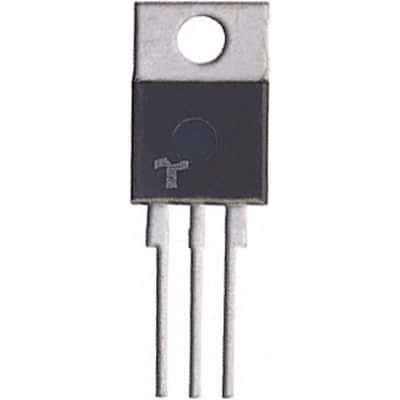

Product Images
