Unidirectional TVS Diode for power line protection. Features a 12V DC rated voltage and 13.3V to 14.7V breakdown voltage. Offers a 19.9V clamping voltage with a peak pulse power of 500W and max surge current of 25.6A. Housed in a DO-204AC package with axial termination for through-hole mounting. Operates across a wide temperature range of -55°C to 175°C.
PackageDO-204AC
MountingThrough Hole
PolarityUnidirectional
Power500W
Quick Jump:
Technical Specifications
Littelfuse SA12A technical specifications.
General
Package/Case
DO-204AC
Clamping Voltage
19.9V
Clamping Voltage-Max
19.9V
Diameter
3.6mm
Diode Type
ZENER
Direction
Unidirectional
Lead Free
Lead Free
Length
7.6mm
Max Breakdown Voltage
14.7V
Min Breakdown Voltage
13.3V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
3W
Max Surge Current
25.6A
Mount
Through Hole
Number of Channels
1
Number of Unidirectional Channels
1
Operating Supply Voltage
12V
Package Quantity
4000
Packaging
Cut Tape
Peak Pulse Current
25.6A
Peak Pulse Power
500W
Polarity
Unidirectional
Power Dissipation
500W
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
12V
RoHS Compliant
Yes
Series
SA
Termination
Axial
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Littelfuse SA12A Datasheet
Download the complete datasheet for Littelfuse SA12A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

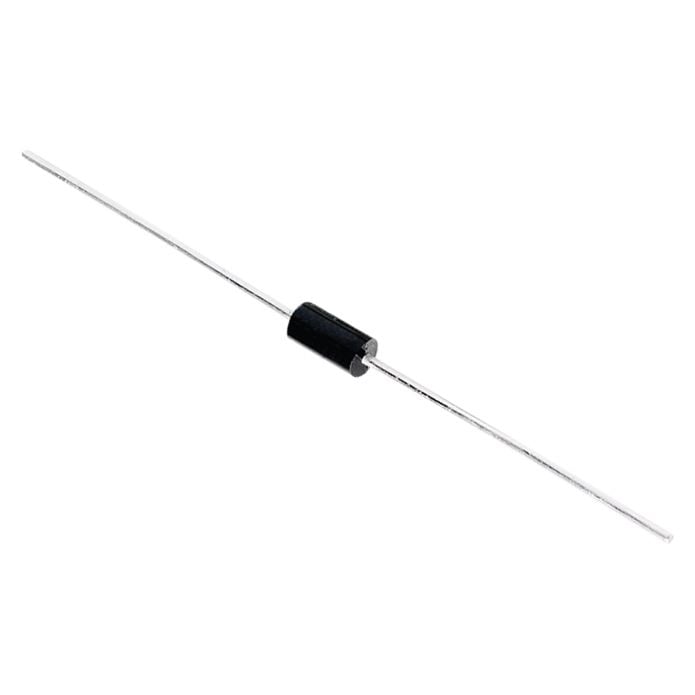

Product Images
