Unidirectional Transient Voltage Suppressor (TVS) diode offering 450W peak pulse power and 30A peak pulse current. Features a 5V reverse standoff voltage and 16.8V clamping voltage. This silicon, single-element device has a low leakage current of 1uA and a capacitance of 350pF. Designed for surface mount applications with a 0805 package, operating from -40°C to 125°C. RoHS compliant and lead-free.
Capacitance350pF
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse SD05-01FTG technical specifications.
General
Capacitance
350pF
Clamping Voltage
16.8V
Diode Type
ZENER
Lead Free
Lead Free
Leakage Current
1uA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
450W
Max Surge Current
30A
Mount
Surface Mount
Number of Channels
1
Number of Unidirectional Channels
1
Packaging
Tape and Reel
Peak Pulse Current
30A
Peak Pulse Power
450W
Polarity
Unidirectional
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Series
SD, SPA®
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Littelfuse SD05-01FTG Datasheet
Download the complete datasheet for Littelfuse SD05-01FTG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

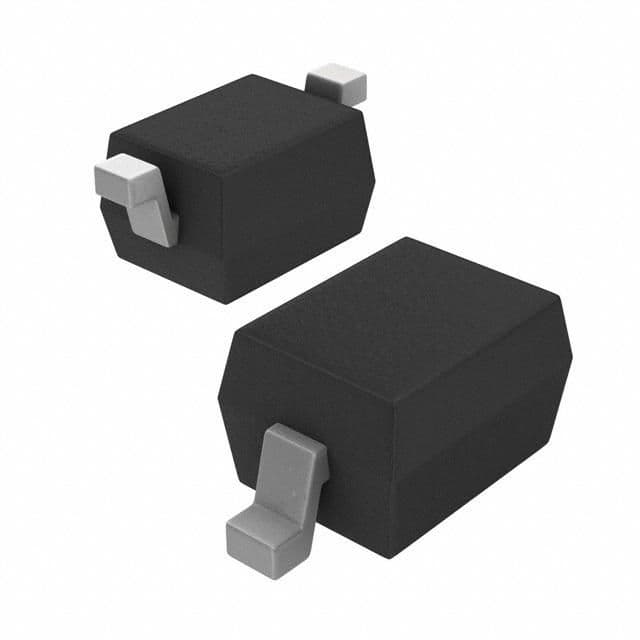

Product Images
