Bidirectional transient voltage suppressor diode, 400W peak pulse power, 400V reverse standoff voltage, and 447V minimum breakdown voltage. Features a 648V clamping voltage, 1µA leakage current, and 600mA peak pulse current. This silicon diode is housed in a DO-214AC surface mount package, operating from -65°C to 150°C. It is RoHS compliant and designed for power line protection.
PackageDO-214AC
MountingSurface Mount
PolarityBidirectional
Power400W
Quick Jump:
Technical Specifications
Littelfuse SMAJ400CA technical specifications.
General
Package/Case
DO-214AC
Clamping Voltage
648V
Clamping Voltage-Max
648V
Diode Type
ZENER
Direction
Bidirectional
Height
2.087mm
Lead Free
Lead Free
Leakage Current
1uA
Length
4.5mm
Max Breakdown Voltage
494V
Min Breakdown Voltage
447V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
3.3W
Max Reverse Leakage Current
1uA
Max Surge Current
600mA
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
400V
Package Quantity
5000
Packaging
Tape and Reel
Peak Pulse Current
600mA
Peak Pulse Power
400W
Polarity
Bidirectional
Power Dissipation
400W
Power Line Protection
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
447V
Reverse Standoff Voltage
400V
RoHS Compliant
Yes
Series
SMAJ
Termination
SMD/SMT
DC Rated Voltage
400V
Width
2.79mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse SMAJ400CA Datasheet
Download the complete datasheet for Littelfuse SMAJ400CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

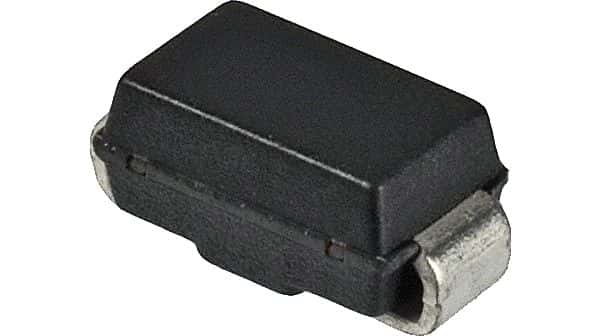

Product Images
