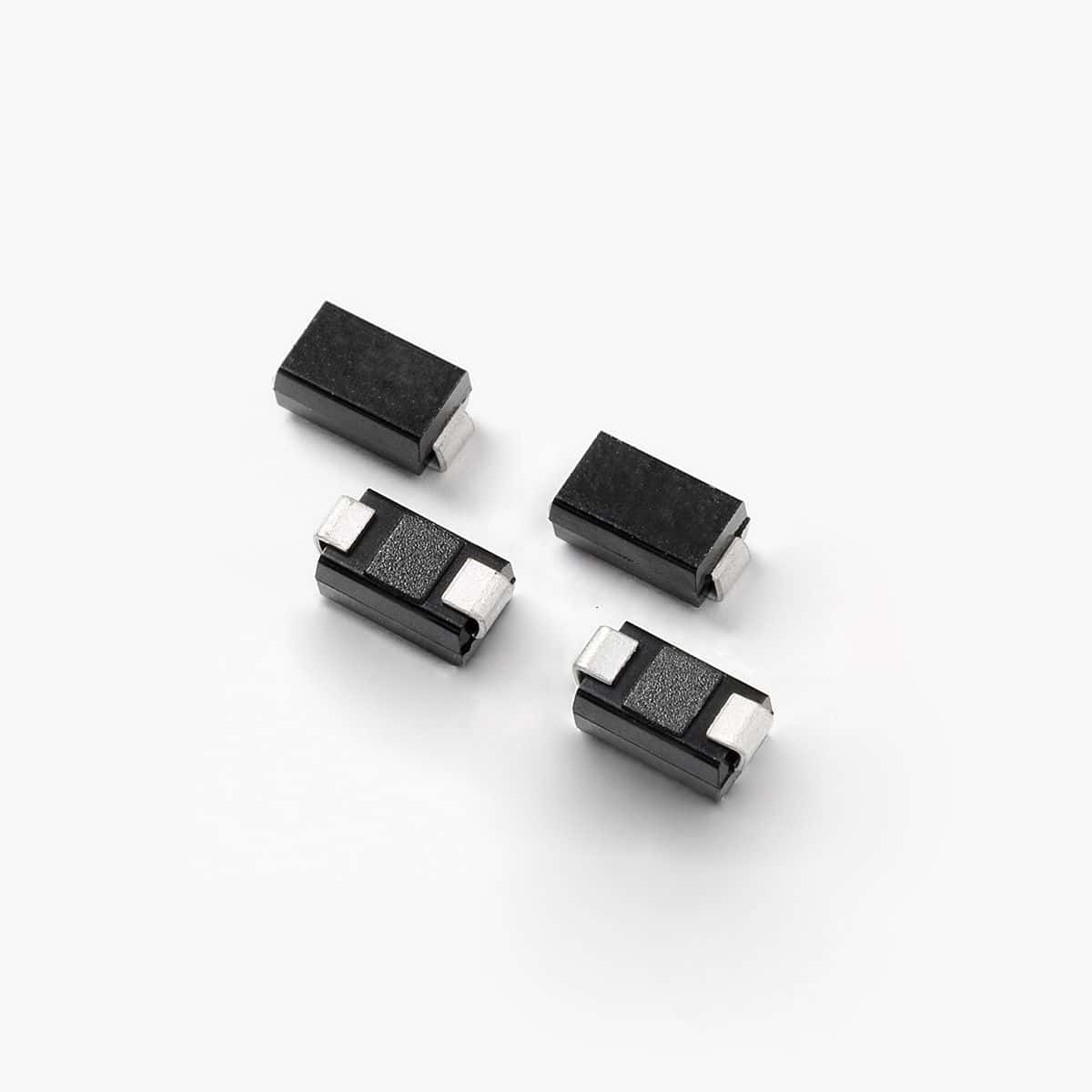

Bidirectional TVS Diode for surge suppression, featuring a 5V DC rated voltage and 6.4V reverse breakdown voltage. This surface mount component offers a 9.2V clamping voltage and 400W peak pulse power dissipation. With a 1.05nF capacitance and 43.5A peak pulse current, it operates across a -65°C to 150°C temperature range. The DO-214AC package is suitable for tape and reel packaging.
PackageDO-214AC
Capacitance1.05nF
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Littelfuse SMAJ5.0CA technical specifications.
General
Capacitance
1.05nF
Package/Case
DO-214AC
Clamping Voltage
9.2V
Clamping Voltage-Max
9.2V
Diode Type
ZENER
Direction
Bidirectional
Height
2.087mm
Lead Free
Lead Free
Leakage Current
1.6mA
Length
4.5mm
Max Breakdown Voltage
7V
Min Breakdown Voltage
6.4V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Output Current
43.5A
Max Power Dissipation
3.3W
Max Reverse Leakage Current
800uA
Max Surge Current
43.5A
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
5V
Package Quantity
5000
Packaging
Tape and Reel
Peak Pulse Current
43.5A
Peak Pulse Power
400W
Polarity
Bidirectional
Power Dissipation
400W
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6.4V
Reverse Standoff Voltage
5V
Reverse Voltage
5V
RoHS Compliant
Yes
Series
SMAJ
Termination
SMD/SMT
DC Rated Voltage
5V
Width
2.79mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse SMAJ5.0CA Datasheet
Download the complete datasheet for Littelfuse SMAJ5.0CA to view detailed technical specifications.
