Surface mount unidirectional TVS diode for surge suppression. Features a 54V reverse standoff voltage and 87.1V clamping voltage. Offers 400W peak pulse power and 4.6A peak pulse current handling. Operates across a -65°C to 150°C temperature range. Packaged in a DO-214AC surface mount package.
PackageDO-214AC
MountingSurface Mount
PolarityUnidirectional
Power400W
Quick Jump:
Technical Specifications
Littelfuse SMAJ54A technical specifications.
General
Package/Case
DO-214AC
Clamping Voltage
87.1V
Clamping Voltage-Max
87.1V
Diode Type
ZENER
Direction
Unidirectional
Height
2.29mm
Lead Free
Lead Free
Leakage Current
1uA
Length
5.28mm
Max Breakdown Voltage
66.3V
Min Breakdown Voltage
60V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
3.3W
Max Surge Current
4.6A
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
54V
Package Quantity
5000
Packaging
Tape and Reel
Peak Pulse Current
4.6A
Peak Pulse Power
400W
Polarity
Unidirectional
Power Dissipation
400W
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
60V
Reverse Standoff Voltage
54V
RoHS Compliant
Yes
Series
SMAJ
Termination
SMD/SMT
DC Rated Voltage
54V
Width
2.79mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse SMAJ54A Datasheet
Download the complete datasheet for Littelfuse SMAJ54A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

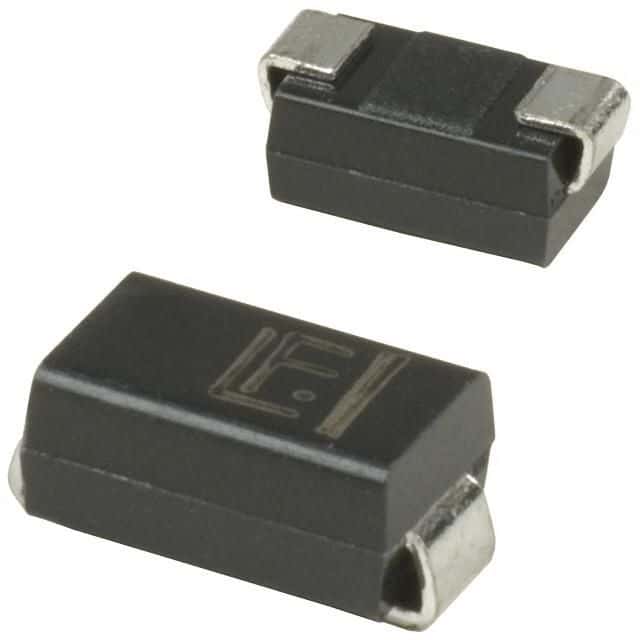

Product Images
