Unidirectional TVS Diode for surge suppression, featuring a 7V reverse standoff voltage and 12V clamping voltage. This surface mount component offers 400W peak pulse power and 33.3A peak pulse current handling. Operating temperature range spans from -65°C to 150°C, with a maximum reverse leakage current of 200uA. The DO214AC package is RoHS compliant and lead-free.
Voltage Rating7V
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse SMAJ7.0A technical specifications.
General
Clamping Voltage
12V
Diode Type
ZENER
Height
2.29mm
Lead Free
Lead Free
Length
5.28mm
Min Breakdown Voltage
7.78V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Reverse Leakage Current
200uA
Mount
Surface Mount
Number of Unidirectional Channels
1
Package Quantity
5000
Packaging
Cut Tape
Peak Pulse Current
33.3A
Peak Pulse Power
400W
Polarity
Unidirectional
Power Line Protection
No
Reverse Standoff Voltage
7V
Reverse Voltage
7V
RoHS Compliant
Yes
Series
SMAJ
Termination
SMD/SMT
DC Rated Voltage
7V
Weight
0.002152oz
Width
2.79mm
Working Voltage
7V
Compliance
RoHS
Compliant
Datasheet
Littelfuse SMAJ7.0A Datasheet
Download the complete datasheet for Littelfuse SMAJ7.0A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

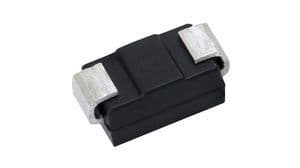

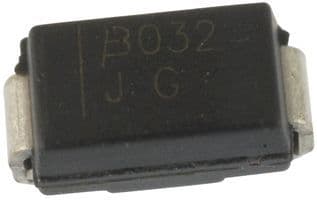

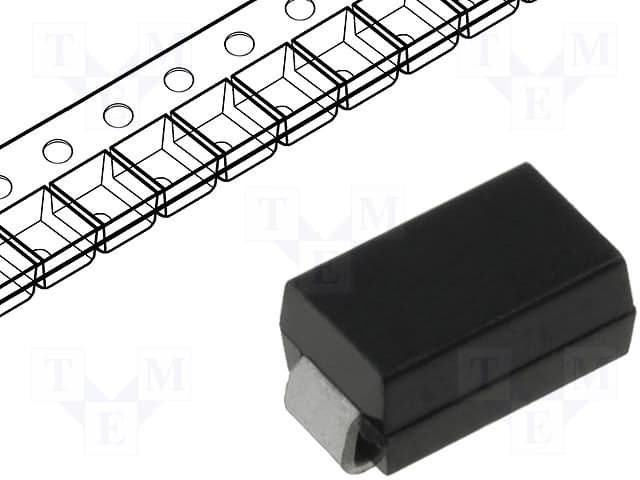

Product Images
