Surface mount unidirectional TVS diode with a 30V DC rated voltage. Features a 48.4V clamping voltage and 600W peak pulse power. Operates within a -65°C to 150°C temperature range, offering 1uA leakage current. Packaged in DO-214AA for tape and reel distribution.
PackageDO-214AA
Voltage30V
Current62A
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse SMBJ30A technical specifications.
General
Package/Case
DO-214AA
Clamping Voltage
48.4V
Clamping Voltage-Max
48.4V
Current
62A
Diode Type
ZENER
Direction
Unidirectional
Height
2.237mm
Lead Free
Lead Free
Leakage Current
1uA
Length
4.57mm
Max Breakdown Voltage
36.8V
Min Breakdown Voltage
33.3V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
5W
Max Reverse Leakage Current
1uA
Max Surge Current
12.4A
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
30V
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
12.4A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Dissipation
600W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
33.3V
Reverse Standoff Voltage
30V
RoHS Compliant
Yes
Series
SMBJ
Termination
SMD/SMT
Voltage
30V
DC Rated Voltage
30V
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse SMBJ30A Datasheet
Download the complete datasheet for Littelfuse SMBJ30A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

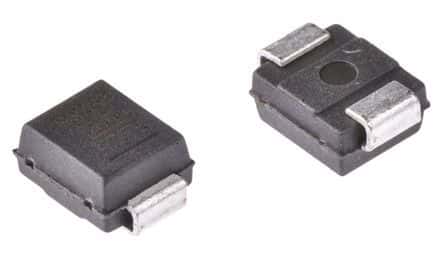

Product Images
