Unidirectional TVS Diode for surge suppression, featuring a 36V reverse standoff voltage and 58.1V clamping voltage. This surface mount component offers a 1.5kW peak pulse power rating and 25.9A peak pulse current capability. Operating across a wide temperature range of -65°C to 150°C, it boasts a low leakage current of 1µA and a maximum power dissipation of 6.5W. The DO-214AB package ensures efficient heat dissipation for robust power line protection.
PackageDO-214AB
MountingSurface Mount
PolarityUnidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Littelfuse SMCJ36A technical specifications.
General
| Package/Case | DO-214AB |
| Clamping Voltage | 58.1V |
| Clamping Voltage-Max | 58.1V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Height | 2.417mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 7.11mm |
| Max Breakdown Voltage | 44.2V |
| Min Breakdown Voltage | 40V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 6.5W |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 25.9A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 36V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 25.9A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Dissipation | 1.5kW |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 40V |
| Reverse Standoff Voltage | 36V |
| Reverse Voltage | 36V |
| RoHS Compliant | Yes |
| Series | SMCJ |
| Termination | SMD/SMT |
| DC Rated Voltage | 36V |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse SMCJ36A Datasheet
Download the complete datasheet for Littelfuse SMCJ36A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

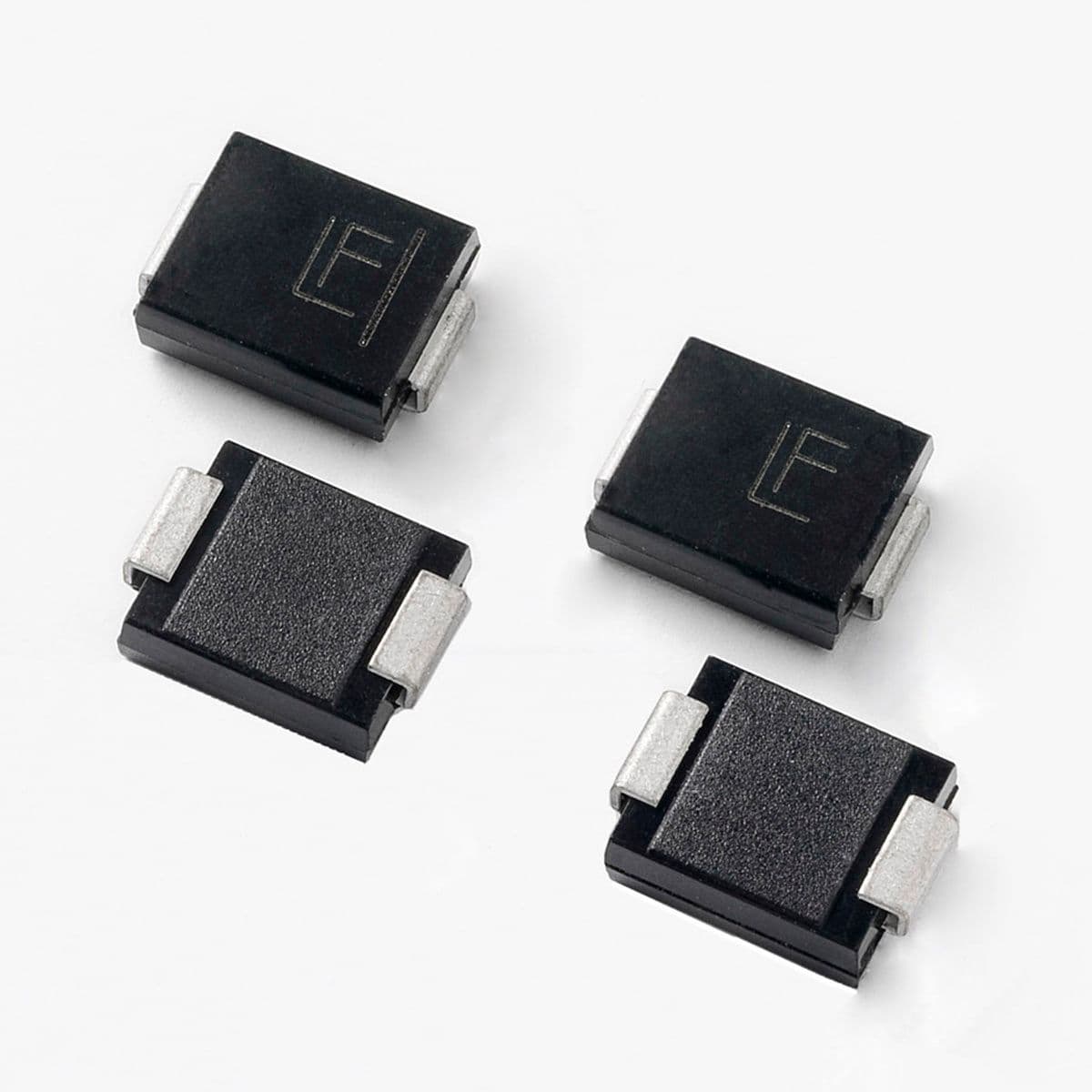

Product Images
