Unidirectional TVS Diode, 8.5V reverse standoff voltage, 14.4V clamping voltage, and 104.2A peak pulse current. This surface mount component features a DO-214AB package, 1.5kW peak pulse power, and 6.5W max power dissipation. Operating temperature range is -55°C to 150°C, with a leakage current of 20uA. RoHS compliant and lead-free.
PackageDO-214AB
MountingSurface Mount
PolarityUnidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Littelfuse SMCJ8.5A technical specifications.
General
Package/Case
DO-214AB
Clamping Voltage
14.4V
Clamping Voltage-Max
137V
Diode Type
ZENER
Direction
Unidirectional
Height
2.62mm
Lead Free
Lead Free
Leakage Current
20uA
Length
8.13mm
Max Breakdown Voltage
104V
Min Breakdown Voltage
94.4V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
6.5W
Max Reverse Leakage Current
1uA
Max Surge Current
104.2A
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
8.5V
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
104.2A
Peak Pulse Power
1.5kW
Polarity
Unidirectional
Power Dissipation
1.5kW
Power Line Protection
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
9.44V
Reverse Standoff Voltage
8.5V
Reverse Voltage
85V
RoHS Compliant
Yes
Series
SMCJ
Termination
SMD/SMT
DC Rated Voltage
185V
Width
6.22mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse SMCJ8.5A Datasheet
Download the complete datasheet for Littelfuse SMCJ8.5A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

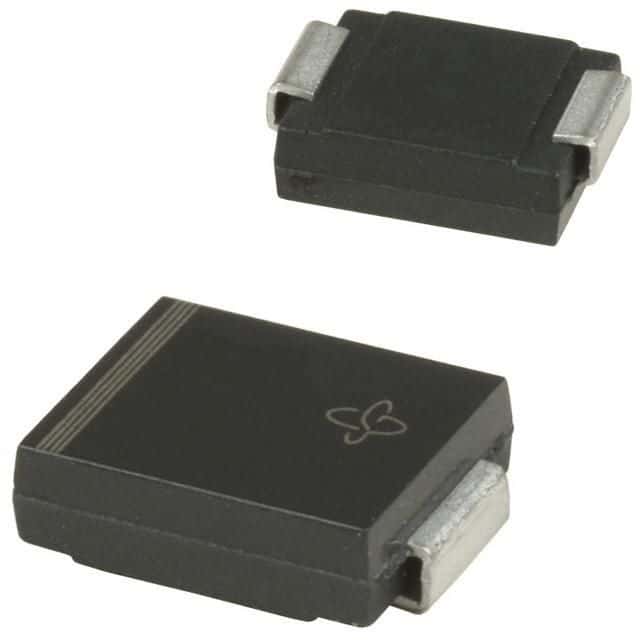

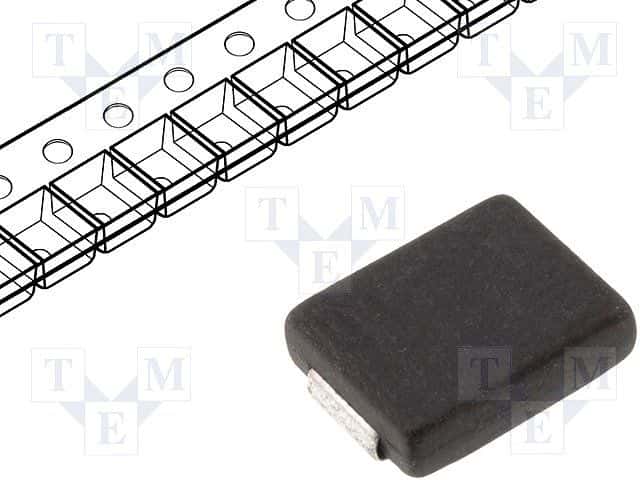

Product Images
