Bidirectional TVS Diode, DO-214AB package, designed for surge suppression. Features a 9V DC rated voltage, 10V reverse breakdown voltage, and 15.4V clamping voltage. Offers a maximum power dissipation of 1.5kW, peak pulse current of 10.3A, and maximum surge current of 97.4A. Operates across a temperature range of -55°C to 150°C. Surface mountable with lead-free and RoHS compliant termination.
PackageDO-214AB
MountingSurface Mount
PolarityBidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Littelfuse SMCJ9.0CA technical specifications.
General
Package/Case
DO-214AB
Clamping Voltage
15.4V
Clamping Voltage-Max
15.4V
Diode Type
ZENER
Direction
Bidirectional
Height
2.62mm
Lead Free
Lead Free
Leakage Current
20uA
Length
8.13mm
Max Breakdown Voltage
11.1V
Min Breakdown Voltage
100V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
6.5W
Max Surge Current
97.4A
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
9V
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
10.3A
Peak Pulse Power
1.5kW
Polarity
Bidirectional
Power Dissipation
1.5kW
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
10V
Reverse Standoff Voltage
90V
RoHS Compliant
Yes
Series
SMCJ
Termination
SMD/SMT
DC Rated Voltage
9V
Weight
0.007408oz
Width
6.22mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse SMCJ9.0CA Datasheet
Download the complete datasheet for Littelfuse SMCJ9.0CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

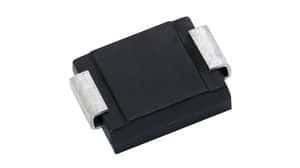

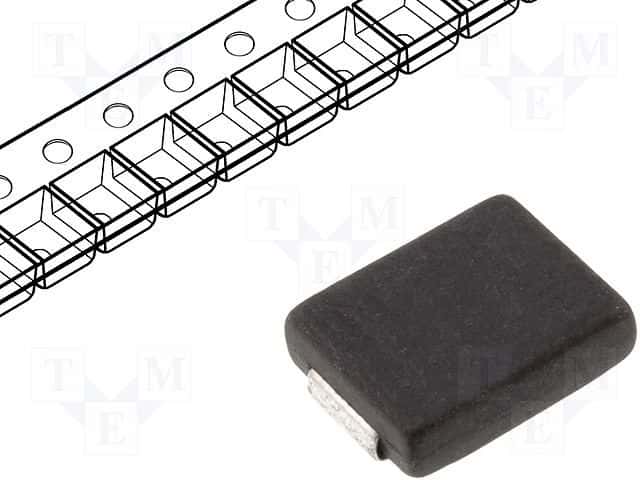

Product Images
