Littelfuse
SMF51A
Trans Voltage Suppressor Diode, 200W, 51V V(RWM), Unidirectional, 1 Element, Silicon, SMF, 2 PIN
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse SMF51A technical specifications.
General
| Clamping Voltage | 82.4V |
| Diode Type | ZENER |
| Lead Free | Contains Lead |
| Max Breakdown Voltage | 62.7V |
| Min Breakdown Voltage | 56.7V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 2.4A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 2.4A |
| Peak Pulse Power | 200W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 51V |
| Reverse Voltage | 51V |
| RoHS Compliant | Yes |
| Series | SMF |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse SMF51A Datasheet
Download the complete datasheet for Littelfuse SMF51A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

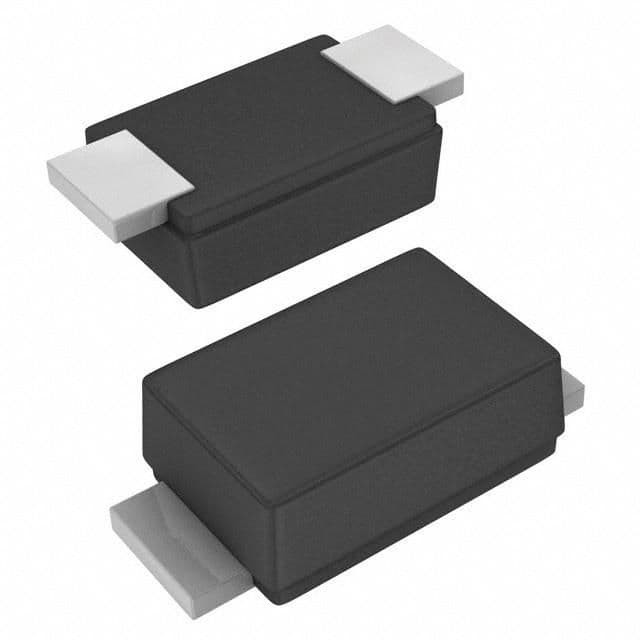

Product Images
