Unidirectional transient voltage suppressor diode, 200W peak pulse power, 6V reverse standoff voltage. Features a 6.67V minimum breakdown voltage and a 7.37V maximum breakdown voltage. Offers a 10.3V clamping voltage at 1A and a 19.4A peak pulse current capability. Designed for surface mount applications with a 2-pin SMF package, operating from -40°C to 150°C.
MountingSurface Mount
PolarityUnidirectional
Power200W
Quick Jump:
Technical Specifications
Littelfuse SMF6.0A technical specifications.
General
| Clamping Voltage | 10.3V |
| Clamping Voltage-Max | 103V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 400uA |
| Max Breakdown Voltage | 7.37V |
| Min Breakdown Voltage | 6.67V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 19.4A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 6V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 19.4A |
| Peak Pulse Power | 200W |
| Polarity | Unidirectional |
| Power Dissipation | 200W |
| Power Line Protection | No |
| Reverse Breakdown Voltage | 6.67V |
| Reverse Standoff Voltage | 6V |
| RoHS Compliant | Yes |
| Series | SMF |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse SMF6.0A Datasheet
Download the complete datasheet for Littelfuse SMF6.0A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

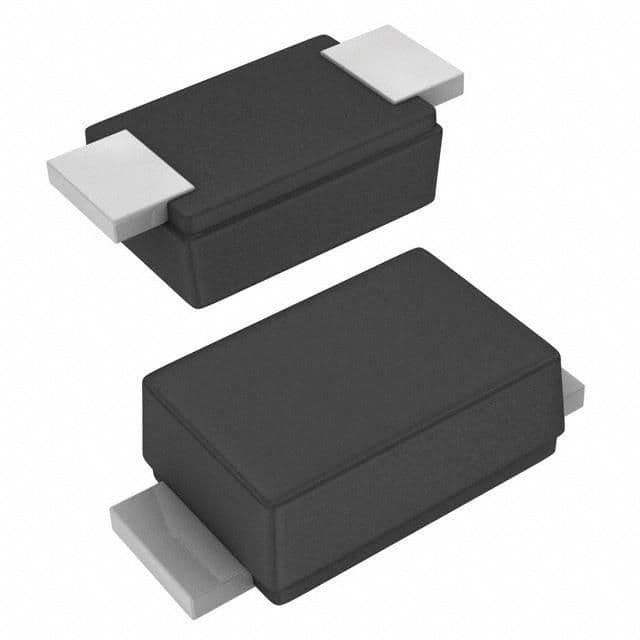

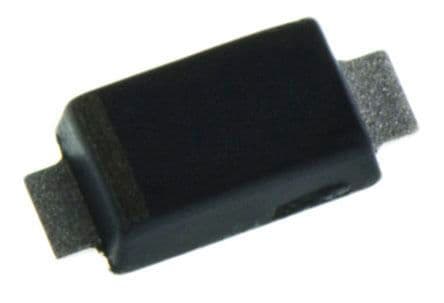

Product Images
