Littelfuse
TPSMA6L18A
Trans Voltage Suppressor Diode, 600W, 18V V(RWM), Unidirectional, 1 Element, Silicon, DO-221AC, SMA, 2 PIN
PackageDO-221AC
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse TPSMA6L18A technical specifications.
General
Package/Case
DO-221AC
Clamping Voltage
29.2V
Diode Type
ZENER
Min Breakdown Voltage
20V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Surge Current
60A
Mount
Surface Mount
Number of Channels
1
Number of Unidirectional Channels
1
Operating Supply Voltage
18V
Packaging
Tape and Reel
Peak Pulse Current
20.6A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Line Protection
No
Reverse Standoff Voltage
18V
RoHS Compliant
Yes
Series
Automotive, AEC-Q101, TPSMA6L
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Littelfuse TPSMA6L18A Datasheet
Download the complete datasheet for Littelfuse TPSMA6L18A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

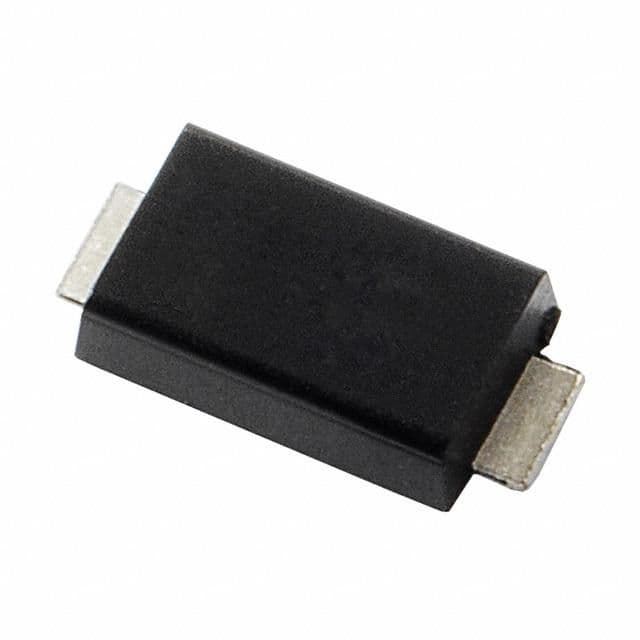

Product Images
