Littelfuse
TPSMB33A
Trans Voltage Suppressor Diode, 600W, 28.2V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN
PackageDO-214AA
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse TPSMB33A technical specifications.
General
Package/Case
DO-214AA
Clamping Voltage
45.7V
Diode Type
ZENER
Leakage Current
1uA
Min Breakdown Voltage
31.4V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Surge Current
100A
Mount
Surface Mount
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
28.2V
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
13.3A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Line Protection
No
Reverse Breakdown Voltage
31.4V
Reverse Standoff Voltage
28.2V
RoHS Compliant
Yes
Series
Automotive, AEC-Q101, TPSMB
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Littelfuse TPSMB33A Datasheet
Download the complete datasheet for Littelfuse TPSMB33A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

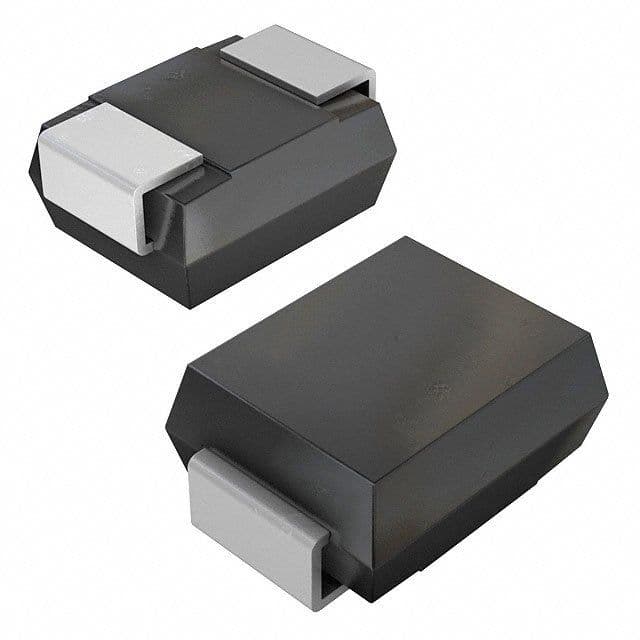

Product Images
