The Littelfuse V26SM20 is a surface mount varistor with a capacitance of 12nF and a clamping voltage of 63V. It is designed to operate within a temperature range of -40°C to 85°C and has a maximum surge current of 2kA. The varistor is lead free and RoHS compliant, making it suitable for use in a variety of applications. It is packaged in a tray with 108 units per package.
PackageSMD/SMT
Capacitance12nF
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse V26SM20 technical specifications.
General
| Capacitance | 12nF |
| Package/Case | SMD/SMT |
| Clamping Voltage | 63V |
| Energy | 20J |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 2kA |
| Max Varistor Voltage | 40V |
| Min Varistor Voltage | 32V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Package Quantity | 108 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SM20 |
| Varistor Voltage | 36V |
| Voltage Rating (AC) | 20V |
| DC Rated Voltage | 26V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse V26SM20 Datasheet
Download the complete datasheet for Littelfuse V26SM20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

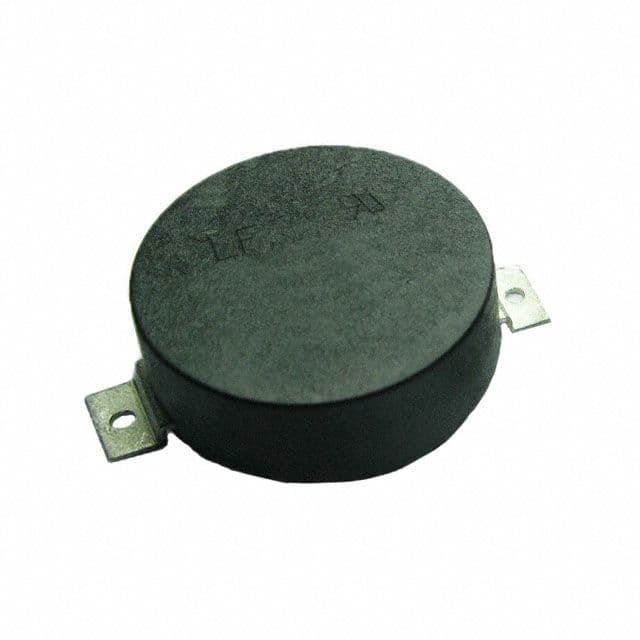

Product Images
