Radial leaded Metal Oxide Varistor (MOV) for circuit protection. Features 275VAC/369VDC maximum voltage rating, 1.2kA surge current capability, and 473V varistor voltage. Offers 80pF capacitance and 710V clamping voltage at 10A. Designed for through-hole mounting with a 6mm lead pitch and 25.4mm lead length. Operates across a wide temperature range from -55°C to 85°C.
Capacitance80pF
Voltage Rating369V
Current Rating1.2kA
MountingRadial, Through Hole
Quick Jump:
Technical Specifications
Littelfuse V275LA4P technical specifications.
General
Capacitance
80pF
Clamping Current
10A
Clamping Voltage
710V
Clamping Voltage-Max
710V
Current Rating
1.2kA
Depth
5.6mm
Diameter
7mm
Energy
23J
Lead Free
Lead Free
Lead Length
25.4mm
Lead Pitch
6mm
Lead/Base Style
Radial
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Output Current
1.2kA
Max Surge Current
1.2kA
Max Varistor Voltage
473V
Min Varistor Voltage
387V
Max Voltage Rating (AC)
275V
Max Voltage Rating (DC)
369V
Mount
Radial, Through Hole
Number of Circuits
1
Package Quantity
1500
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
LA
Termination
Radial
Thickness
5.6mm
Varistor Voltage
473V
Voltage Rating
369V
Voltage Rating (AC)
275V
DC Rated Voltage
369V
Compliance
RoHS
Compliant
Datasheet
Littelfuse V275LA4P Datasheet
Download the complete datasheet for Littelfuse V275LA4P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

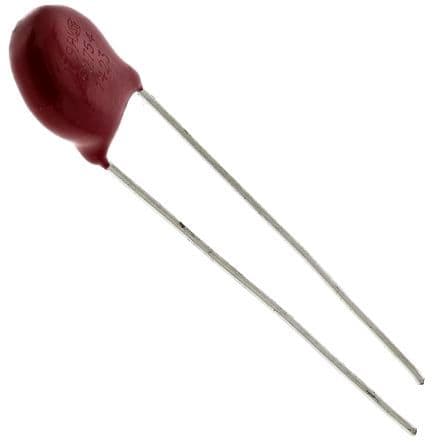

Product Images
