Surface mount varistor with 30V DC rated voltage and 25V AC rated voltage. Features 0.1J energy absorption, 1A clamping current, and 74V clamping voltage. Operating temperature range from -55°C to 125°C. Housed in a 0603 (1608 metric) ceramic case with SMD/SMT termination, this lead-free component offers 90pF capacitance and UL94 V-0 flammability rating.
Package0603
Capacitance90pF
Voltage Rating30V
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse V30MLA0603H technical specifications.
General
Capacitance
90pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Clamping Current
1A
Clamping Voltage
74V
Clamping Voltage-Max
74V
Depth
0.8mm
Energy
0.1J
Flammability Rating
UL94 V-0
Lead Free
Lead Free
Length
1.6mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
30A
Max Surge Current
30A
Max Varistor Voltage
46V
Min Varistor Voltage
37V
Max Voltage Rating (AC)
25V
Max Voltage Rating (DC)
30V
Mount
Surface Mount
Number of Circuits
1
Package Quantity
2500
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MLA
Size Code
0603
Termination
SMD/SMT
Varistor Voltage
41.5V
Voltage Rating
30V
Voltage Rating (AC)
25V
DC Rated Voltage
30V
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse V30MLA0603H Datasheet
Download the complete datasheet for Littelfuse V30MLA0603H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

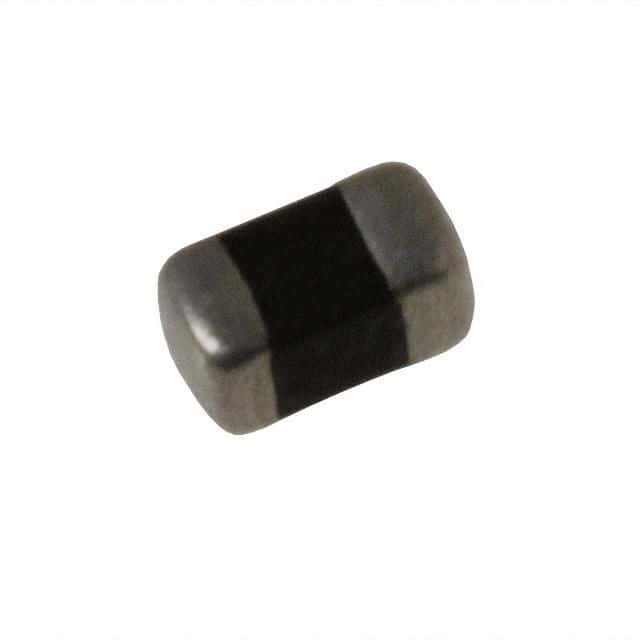

Product Images
