Radial leaded metal oxide varistor (MOV) for overvoltage and surge protection. Features a 320VAC/420VDC voltage rating, 4.5kA maximum surge current, and 80J energy absorption. With a 561V varistor voltage and 850V clamping voltage at 50A, this component offers robust circuit protection. Designed for through-hole mounting with an 8.5mm lead pitch and a 14mm diameter.
Capacitance380pF
Voltage Rating420V
Current Rating50A
MountingRadial, Through Hole
Quick Jump:
Technical Specifications
Littelfuse V320LA20AP technical specifications.
General
Capacitance
380pF
Clamping Current
50A
Clamping Voltage
850V
Clamping Voltage-Max
850V
Current Rating
50A
Depth
5.6mm
Diameter
14mm
Energy
80J
ESD Protection
No
Height
20mm
Lead Free
Lead Free
Lead Length
25.4mm
Lead Pitch
8.5mm
Lead/Base Style
Radial
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Output Current
4.5kA
Max Surge Current
4.5kA
Max Varistor Voltage
561V
Min Varistor Voltage
459V
Max Voltage Rating (AC)
320V
Max Voltage Rating (DC)
420V
Mount
Radial, Through Hole
Number of Circuits
1
Package Quantity
600
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
LA
Termination
Radial
Thickness
5.6mm
Varistor Voltage
565V
Voltage Rating
420V
Voltage Rating (AC)
320V
DC Rated Voltage
420V
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse V320LA20AP Datasheet
Download the complete datasheet for Littelfuse V320LA20AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

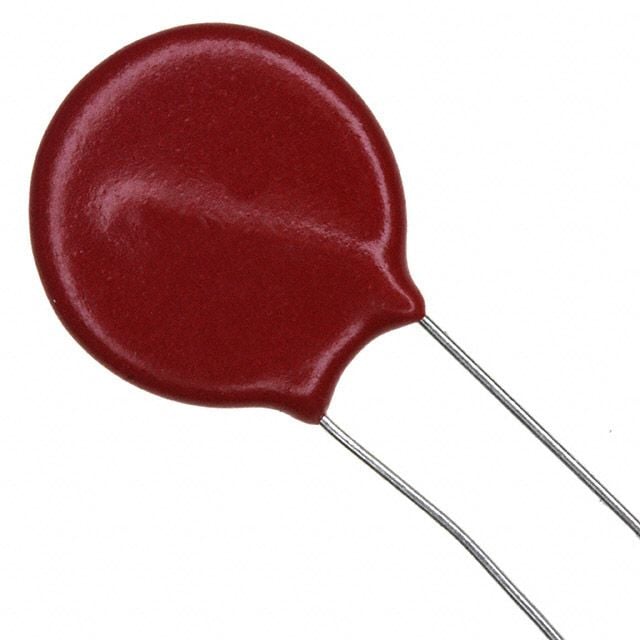

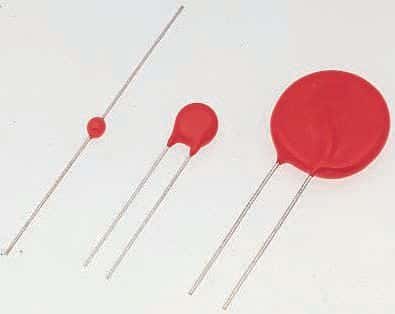

Product Images
