Surface mount varistor, 5.5V DC rated voltage, 9.3V maximum varistor voltage, and 17.5V clamping voltage. Features 0.1J energy rating, 450pF capacitance, and a 30A maximum surge current. Encased in a 0603 (1608 metric) surface mount package, this RoHS compliant component operates from -55°C to 125°C. Supplied on tape and reel.
Package0603
Voltage9.3V
Capacitance450pF
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse V5.5MLA0603LNR technical specifications.
General
Capacitance
450pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Clamping Voltage
17.5V
Energy
0.1J
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Surge Current
30A
Max Varistor Voltage
9.3V
Min Varistor Voltage
7.1V
Mount
Surface Mount
Number of Circuits
1
Package Quantity
4000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
MLA
Termination
SMD/SMT
Varistor Voltage
8.2V
Voltage
9.3V
Voltage Rating (AC)
4V
DC Rated Voltage
5.5V
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse V5.5MLA0603LNR Datasheet
Download the complete datasheet for Littelfuse V5.5MLA0603LNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

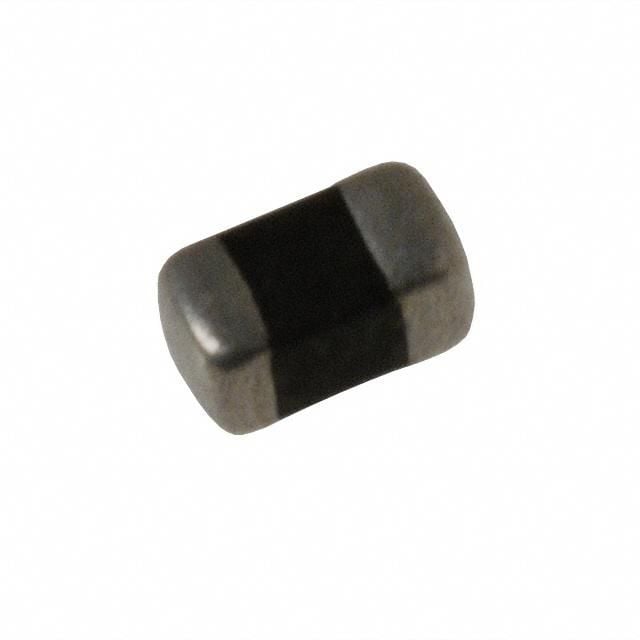

Product Images
