12-position, single-pole rotary switch with a 30° index angle, featuring a 0.15A contact current rating and 350mA current rating. This illuminated switch offers a 250V AC/DC voltage rating and is constructed with brass contacts with silver plating. Designed for through-hole panel mounting with solder termination, it operates within a -30°C to 85°C temperature range and meets UL94 V-0 flammability standards.
Voltage Rating300V
Current Rating350mA
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
Lorlin CK1059 technical specifications.
General
Contact Current Rating
150mA
Contact Material
Brass, Silver
Contact Plating
Silver
Contact Style
Shorting
Current Rating
350mA
Diameter
27.5mm
Flammability Rating
UL94 V-0
Height
71.1mm
Illumination Type
Illuminated
Index Angle
30°
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mount
Through Hole, Panel
Number of Contacts
1
Number of Decks
1
Number of Poles
1
Number of Poles per Deck
1
Number of Positions
12
Package Quantity
50
Radiation Hardening
No
Reach SVHC Compliant
No
Termination
Solder
Throw Configuration
SP12T
Voltage Rating
300V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Not CompliantNo
Datasheet
Lorlin CK1059 Datasheet
Download the complete datasheet for Lorlin CK1059 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

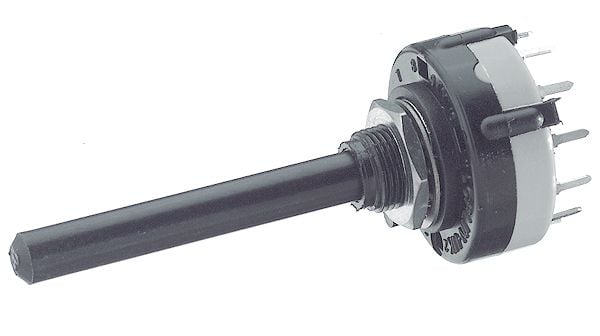

Product Images
