64Mb Non-Volatile FLASH memory, operating at up to 86MHz. This surface mount component features a WSON-8 package with an 8x6mm footprint and 0.80mm height, offering a 1.27mm pitch. Designed for industrial temperature ranges from -40°C to 85°C, it operates with a nominal supply voltage of 3.6V. The component is lead-free and RoHS compliant.
Frequency86MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Macronix MX25L6406EZNI-12G technical specifications.
General
Density
64Mb
Frequency
86MHz
Lead Free
Lead Free
Max Frequency
86MHz
Max Operating Temperature
85°C
Memory Size
64Mb
Memory Type
Non-Volatile, , FLASH
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Tray
RoHS Compliant
Yes
Series
MX25xxx05/06/08
Supply Voltage-Nom
3.6V
Temperature Grade
INDUSTRIAL
Compliance
RoHS
Compliant
Datasheet
Macronix MX25L6406EZNI-12G Datasheet
Download the complete datasheet for Macronix MX25L6406EZNI-12G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

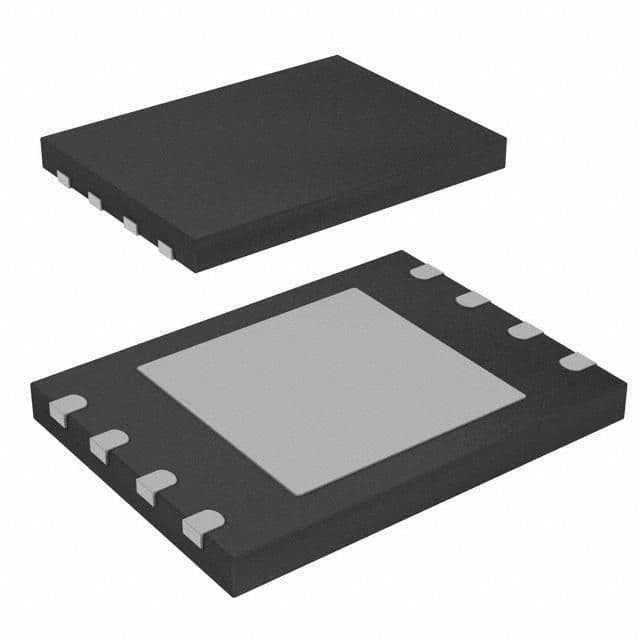

Product Images
