The Macronix MX29F800CTMI-70G is an 8Mb parallel NOR flash memory device with a maximum access time of 70ns. It operates within a temperature range of -40°C to 85°C and is supplied at a nominal voltage of 5.5V. The device is packaged in a SOIC package and is lead-free compliant. It is available in a 16-piece packaging configuration, either on a reel or in a tube.
PackageSOIC
Quick Jump:
Technical Specifications
Macronix MX29F800CTMI-70G technical specifications.
General
| Access Time-Max | 70ns |
| Package/Case | SOIC |
| Density | 8Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Memory Type | FLASH, , NOR |
| Min Operating Temperature | -40°C |
| Package Quantity | 16 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | MX29F |
| Supply Voltage-Nom | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
Macronix MX29F800CTMI-70G Datasheet
Download the complete datasheet for Macronix MX29F800CTMI-70G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

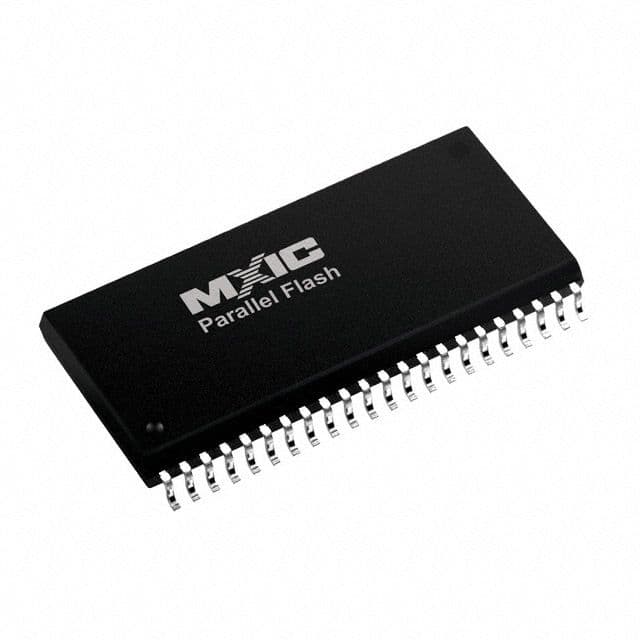

Product Images
