Mallory Sonalert
SC628PR
Audio Indicator Piezo 6VDC 28VDC 26mA 68dBA 2400Hz to 3400Hz Panel Mount Screw Bulk
Frequency2.9kHz
Current Rating26mA
MountingPanel, Flush
Quick Jump:
Technical Specifications
Mallory Sonalert SC628PR technical specifications.
General
Current Rating
26mA
Diameter
43mm
Frequency
2.9kHz
Height
32.6mm
Input Type
DC
Max Operating Temperature
65°C
Min Operating Temperature
-30°C
Max Supply Current
26mA
Max Supply Voltage
28V
Min Supply Voltage
6V
Mount
Panel, Flush
Operating Supply Current
26mA
Outside Diameter
42.85mm
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
Unknown
Self Resonant Frequency
2.9kHz
Series
SC
Termination
Screw
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
Mallory Sonalert SC628PR Datasheet
Download the complete datasheet for Mallory Sonalert SC628PR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

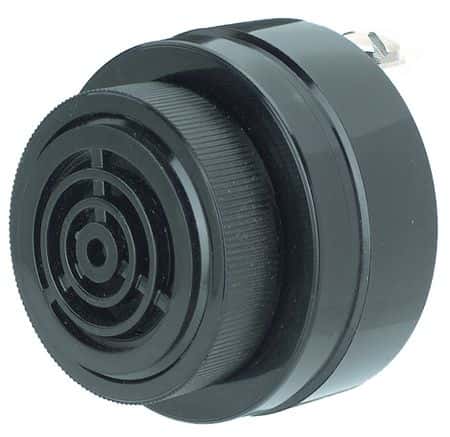

Product Images
