Marquardt
1005.1001
Switch Snap Action N.O./N.C. SPDT Plunger 10A 400VAC 186.42VA 2.5N Screw Mount Quick Connect
Package125
Current Rating10A
MountingBrackets
Quick Jump:
Technical Specifications
Marquardt 1005.1001 technical specifications.
General
Actuator Type
PLUNGER
Package/Case
125
Contact Current Rating
10A
Contact Material
Silver
Contact Type
1 change-over
Current Rating
10A
Height
16mm
Length
10.3mm
Max Operating Temperature
100°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-40°C
Mount
Brackets
Operating Force
0.5N
Package Quantity
400
Termination
Tab
Throw Configuration
SPDT
Width
28mm
Compliance
RoHS
Compliant
Datasheet
Marquardt 1005.1001 Datasheet
Download the complete datasheet for Marquardt 1005.1001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

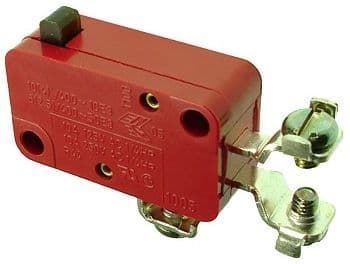

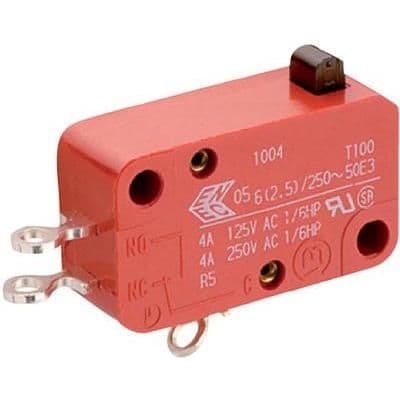

Product Images
