Marquardt
1050.1102
Snap Acting/Limit Switch, SPDT, Momentary, 0.1778mm, Quick Connect Terminal, Plunger Actuator, Panel Mount
Package125
Current Rating5A
MountingPanel, Brackets
Quick Jump:
Technical Specifications
Marquardt 1050.1102 technical specifications.
General
Actuator Type
PLUNGER
Package/Case
125
Contact Current Rating
5A
Contact Material
Silver
Contact Type
1 change-over
Current Rating
5A
Height
10mm
Length
6.4mm
Max Operating Temperature
100°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-40°C
Mount
Panel, Brackets
Number of Positions
2
Operating Force
0.5N
Package Quantity
500
Ratings
IP00, IP40
Reach SVHC Compliant
No
RoHS Compliant
No
Series
1050
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
250V
Width
19.8mm
Compliance
RoHS
Not Compliant
Datasheet
Marquardt 1050.1102 Datasheet
Download the complete datasheet for Marquardt 1050.1102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

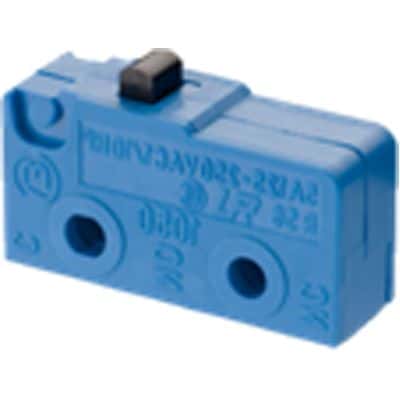

Product Images
