Marquardt
1050.6702
Switch Snap Action N.O./N.C. SPDT Roller Lever 5A 250VAC 74.57VA <=0.6N Screw Mount Quick Connect
Package125
Current Rating5A
MountingPanel, Brackets
Quick Jump:
Technical Specifications
Marquardt 1050.6702 technical specifications.
General
Actuator Type
ROLLER LEVER
Package/Case
125
Contact Current Rating
5A
Contact Material
Silver
Contact Type
1 change-over
Current Rating
5A
Height
10mm
Lead Free
Lead Free
Length
6.4mm
Max Operating Temperature
100°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-40°C
Mount
Panel, Brackets
Operating Force
0.5N
Package Quantity
400
Ratings
IP00, IP40
Series
1050
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
250V
Width
19.8mm
Compliance
RoHS
Compliant
Datasheet
Marquardt 1050.6702 Datasheet
Download the complete datasheet for Marquardt 1050.6702 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

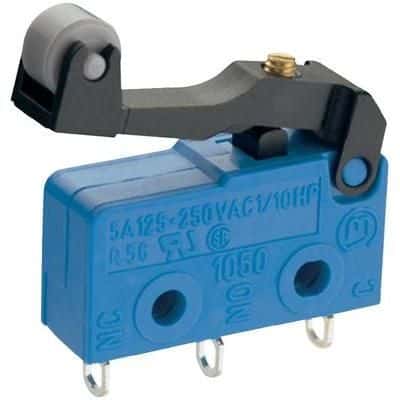

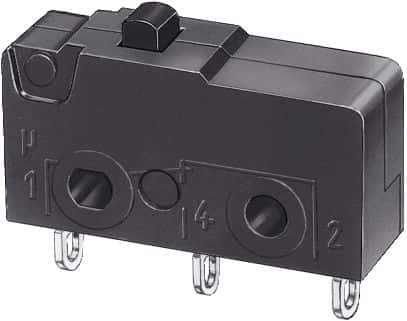

Product Images
