Current Rating2A
MountingThrough Hole, Brackets
Quick Jump:
Technical Specifications
Marquardt 1056.0351 technical specifications.
General
Actuator Type
PIN PLUNGER
Contact Current Rating
4A
Contact Material
Gold, Silver
Contact Type
1 change-over
Current Rating
2A
Height
11.5mm
Length
6.3mm
Max Operating Temperature
85°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-40°C
Mount
Through Hole, Brackets
Operating Force
0.5N
Package Quantity
2000
Ratings
IP40, IP00
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
1055
Termination
Solder
Throw Configuration
SPDT
DC Rated Voltage
24V
Width
13mm
Compliance
RoHS
Compliant
Datasheet
Marquardt 1056.0351 Datasheet
Download the complete datasheet for Marquardt 1056.0351 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

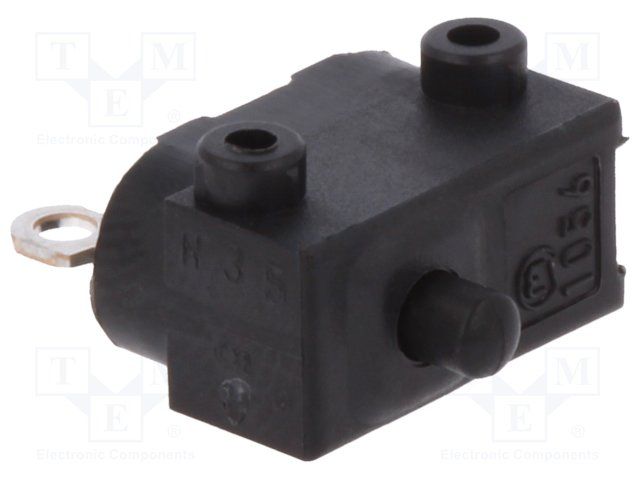

Product Images
