Package125
Current Rating12A
MountingPanel
Quick Jump:
Technical Specifications
Marquardt 1686.1101 technical specifications.
General
Package/Case
125
Contact Current Rating
12A
Contact Material
Silver
Contact Plating
Silver
Contact Type
1 breaker
Current Rating
12A
Flammability Rating
UL94 V-0
Illumination Color
Red
Illumination Type
Illuminated
Length
21mm
Max Operating Temperature
100°C
Min Operating Temperature
-20°C
Mount
Panel
Number of Poles
1
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
No
Series
1683
Tab Width
4.8mm
Termination
Quick Connect
Throw Configuration
SPST
Voltage Rating (AC)
250V
Width
15mm
Compliance
RoHS
Not Compliant
Datasheet
Marquardt 1686.1101 Datasheet
Download the complete datasheet for Marquardt 1686.1101 to view detailed technical specifications.
No datasheet is available for this part.

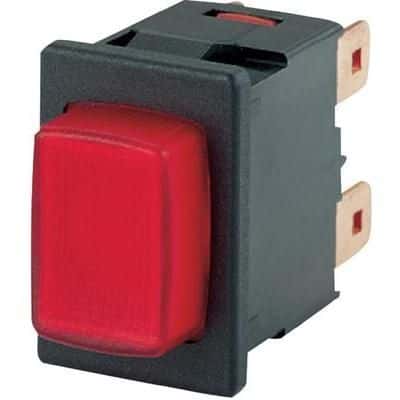

Product Images
