Package125
Current Rating6A
MountingPanel
Quick Jump:
Technical Specifications
Marquardt 1821.1101 technical specifications.
General
Actuator Length
14mm
Actuator Material
Polyamide
Package/Case
125
Contact Current Rating
6A
Contact Material
Silver
Contact Plating
Silver
Current Rating
6A
Illumination Type
Illuminated
Lead Free
Lead Free
Length
16.6mm
Max Operating Temperature
55°C
Mechanical Life
50000Cycles
Min Operating Temperature
-20°C
Mount
Panel
Ratings
IP40
RoHS Compliant
No
Series
1820
Termination
Quick Connect
Throw Configuration
SPST
Voltage Rating (AC)
250V
Width
23.9mm
Compliance
RoHS
Not Compliant
Datasheet
Marquardt 1821.1101 Datasheet
Download the complete datasheet for Marquardt 1821.1101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

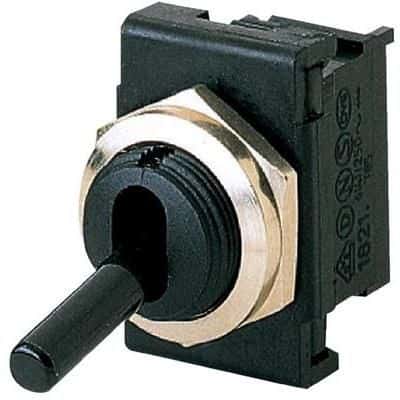

Product Images
