Package125
Current Rating6A
MountingPanel
Quick Jump:
Technical Specifications
Marquardt 1841.1201 technical specifications.
General
Package/Case
125
Contact Current Rating
6A
Contact Material
Silver
Contact Plating
Silver
Contact Type
1 maker
Current Rating
6A
Flammability Rating
UL94 V-2
Illumination Type
Illuminated
Length
23.9mm
Max Operating Temperature
55°C
Min Operating Temperature
-20°C
Mount
Panel
Ratings
IP40
RoHS Compliant
No
Series
1840
Termination
Quick Connect
Throw Configuration
SP
Voltage Rating (AC)
250V
Width
16.6mm
Compliance
RoHS
Not Compliant
Datasheet
Marquardt 1841.1201 Datasheet
Download the complete datasheet for Marquardt 1841.1201 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

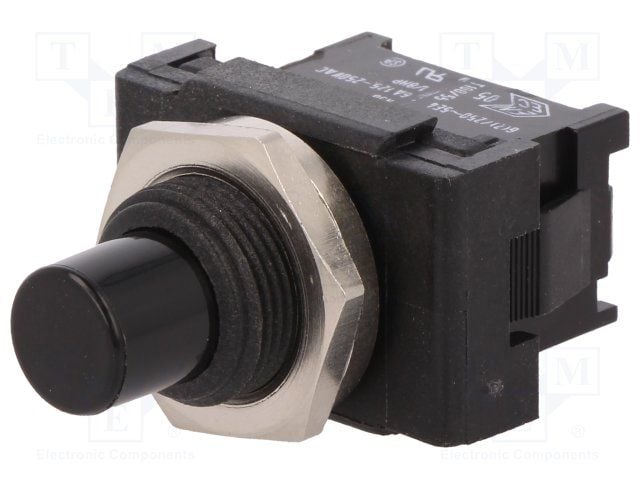

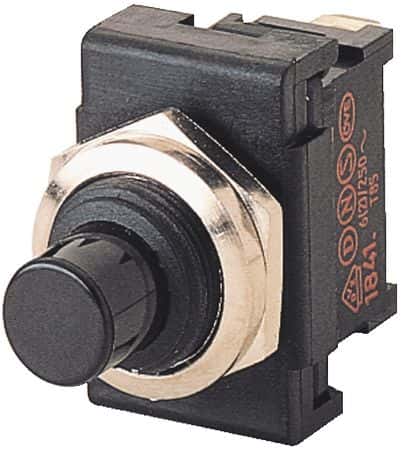

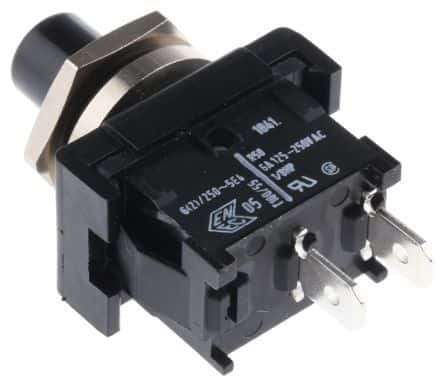

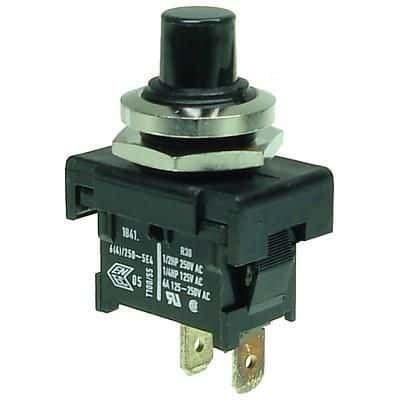

Product Images
