Illuminated SPST keylock switch featuring gold-plated contacts for 100mA at 28VAC/28VDC. This thru-hole component offers a 0.7N operating force and a mechanical lifespan of 1,000,000 cycles. Constructed from UL94 HB rated plastic, it operates within a temperature range of -20°C to 70°C.
Package0101
Current Rating100mA
MountingPCB
Quick Jump:
Technical Specifications
Marquardt 6425.0101 technical specifications.
General
Package/Case
0101
Contact Current Rating
100mA
Contact Material
Gold
Contact Plating
Gold
Contact Type
1 maker
Current Rating
100mA
Flammability Rating
UL94 HB
Height
10.7mm
Illumination Type
Illuminated
Lead Free
Lead Free
Length
14.8mm
Material
Plastic
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
PCB
Operating Force
0.7N
Reach SVHC Compliant
No
RoHS Compliant
No
Series
6425
Switching Voltage
28V
Termination
Solder
Throw Configuration
SP
DC Rated Voltage
28V
Width
13.5mm
Compliance
RoHS
Not Compliant
Datasheet
Marquardt 6425.0101 Datasheet
Download the complete datasheet for Marquardt 6425.0101 to view detailed technical specifications.
No datasheet is available for this part.

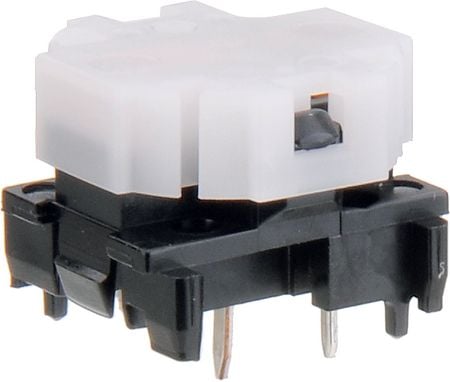

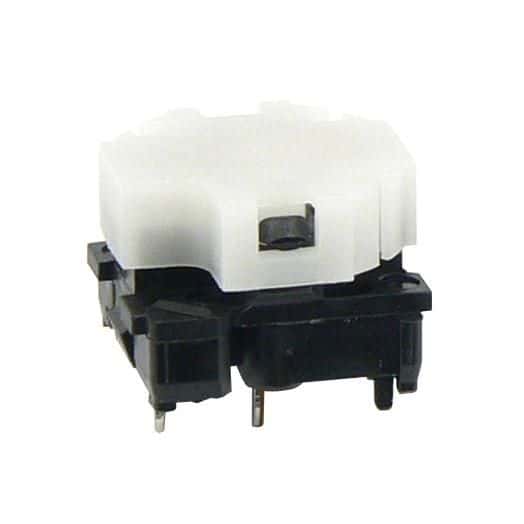

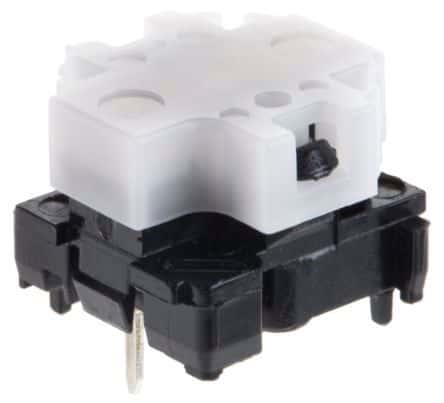

Product Images
