The DS1216B is a real time clock IC from Maxim, featuring 2000B of RAM and operating on 5V with a supply current of 5mA. It is packaged in a DIP package with dimensions of 10.67mm in height, 35.31mm in length, and 17.53mm in width. The IC has a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. It is not radiation hardened and is not RoHS compliant.
PackageDIP
Capacitance7pF
Quick Jump:
Technical Specifications
Maxim DS1216B technical specifications.
General
| Capacitance | 7pF |
| Package/Case | DIP |
| Height | 10.67mm |
| Interface | Serial |
| Lead Free | Contains Lead |
| Length | 35.31mm |
| Logic Function | Clock |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 2000B |
| Memory Type | RAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Operating Supply Current | 5mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 13 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Time Format | HH:MM:SS:hh |
| Width | 17.53mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Maxim DS1216B Datasheet
Download the complete datasheet for Maxim DS1216B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

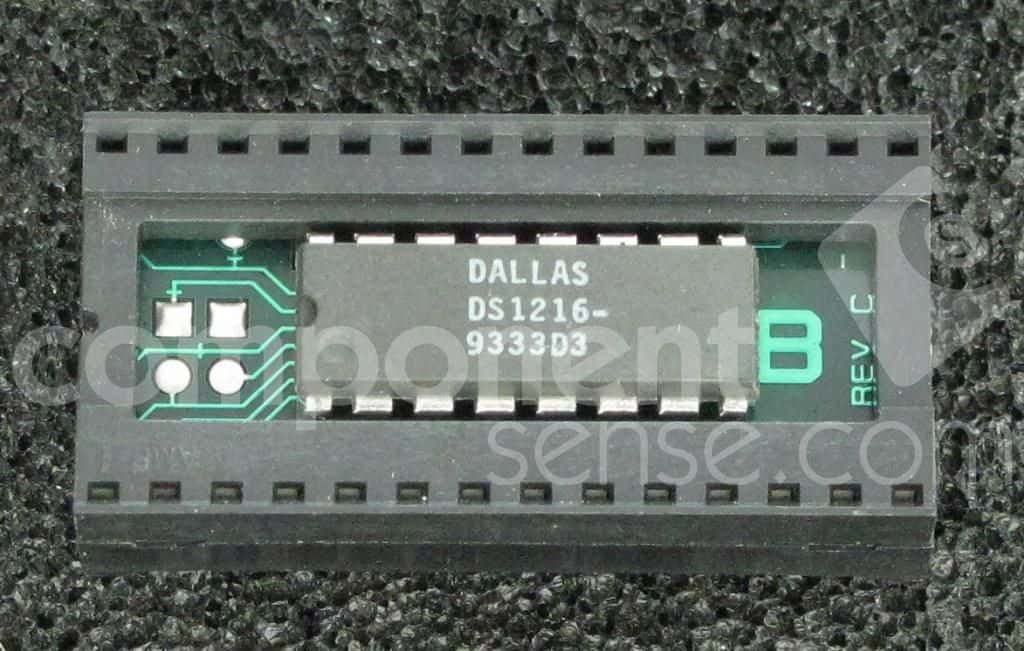

Product Images
