64Kb Non-Volatile Static Random-Access Memory (NVSRAM) with a parallel interface. Features an 8-bit data bus width and an organization of 8K x 8. Access time is 150ns, with an operating supply voltage of 5V. Packaged in a 28-pin EDIP for through-hole mounting, this RoHS compliant component operates between 0°C and 70°C.
Frequency150GHz
PackageDIP
Current75mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1225AD-150+ technical specifications.
General
| Access Time | 150ns |
| Access Time-Max | 150ns |
| Package/Case | DIP |
| Data Bus Width | 8b |
| Density | 64Kb |
| Frequency | 150GHz |
| Height | 9.4mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 39.12mm |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 64Kb |
| Memory Type | Non-Volatile, , NVSRAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Operating Supply Current | 75mA |
| Operating Supply Voltage | 5V |
| Organization | 8KX8 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 75mA |
| Width | 18.29mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1225AD-150+ Datasheet
Download the complete datasheet for Maxim DS1225AD-150+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

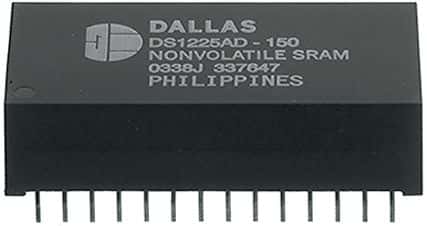

Product Images
