Technical Specifications
Maxim DS1225Y-200 technical specifications.
General
| Access Time | 200ns |
| Access Time-Max | 200ns |
| Package/Case | Module |
| Data Bus Width | 8b |
| Density | 64Kb |
| Height | 9.4mm |
| Interface | Parallel |
| Length | 39.12mm |
| Load Capacitance | 10pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 64Kb |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Organization | 8KX8 |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
| Series | DS1225Y |
| Width | 18.29mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Maxim DS1225Y-200 Datasheet
Download the complete datasheet for Maxim DS1225Y-200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

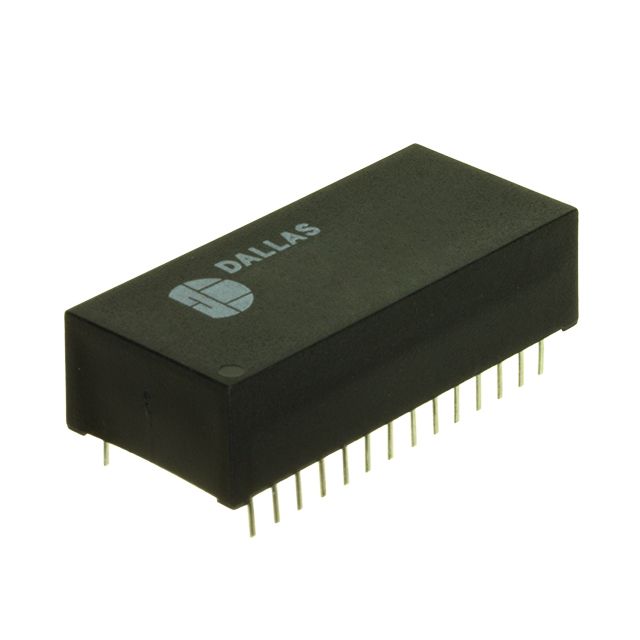

Product Images
