256Kb Parallel NVSRAM, organized as 32K x 8, offers 150ns access time. This non-volatile memory IC features an 8-bit data bus and 15-bit address bus, operating with a 5V supply voltage (4.5V to 5.5V range). Packaged in a 28-pin EDIP for through-hole mounting, it supports a maximum operating temperature of 70°C. RoHS compliant and lead-free, this memory component is ideal for applications requiring reliable data retention.
Frequency150GHz
PackageDIP
Current85mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1230Y-150+ technical specifications.
General
| Access Time | 150ns |
| Access Time-Max | 150ns |
| Address Bus Width | 15b |
| Package/Case | DIP |
| Data Bus Width | 8b |
| Density | 256Kb |
| Frequency | 150GHz |
| Height | 9.4mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 39.12mm |
| Max Operating Temperature | 70°C |
| Memory Size | 256Kb |
| Memory Type | Non-Volatile, , NVSRAM |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Words | 32000 |
| Operating Supply Current | 85mA |
| Operating Supply Voltage | 5V |
| Organization | 32KX8 |
| Package Quantity | 12 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 85mA |
| Width | 18.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1230Y-150+ Datasheet
Download the complete datasheet for Maxim DS1230Y-150+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

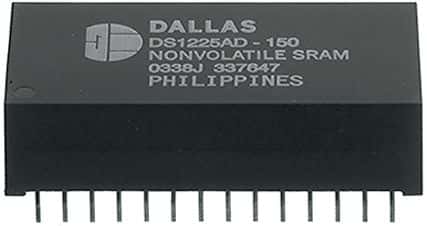

Product Images
