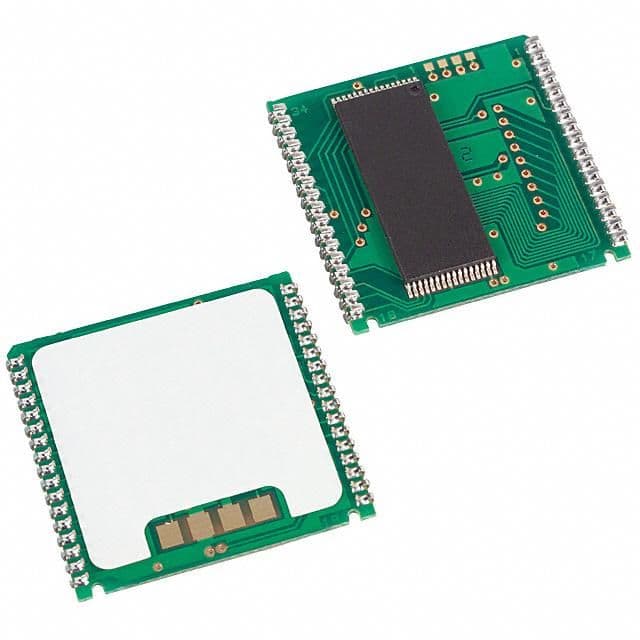

The DS1553WP-120 is a 34-pin commercial real-time clock timer IC from Maxim, operating within a temperature range of 0 to 70°C. It is designed to function with a nominal supply voltage of 3.3V, with a minimum and maximum supply voltage of 2.97V and 3.63V, respectively. The IC has a maximum clock frequency of 0.032 MHz and supports an 8-bit external data bus. It is a dual-terminal device with a JEDEC package code of R-XDMA-U34 and a package type of POWERCAP MODULE-34.
Quick Jump:
Technical Specifications
Maxim DS1553WP-120 technical specifications.
General
| Max Operating Temperature | 70 |
| Number of Terminals | 34 |
| Min Operating Temperature | 0 |
| Terminal Position | DUAL |
| JEDEC Package Code | R-XDMA-U34 |
| Pin Count | 34 |
| Temperature Grade | COMMERCIAL |
| Supply Voltage-Nom | 3.3 |
| Supply Voltage-Min | 2.97 |
| Supply Voltage-Max | 3.63 |
| Clock Frequency-Max | 0.032 |
| uPs/uCs/Peripheral ICs Type | TIMER, REAL TIME CLOCK |
| External Data Bus Width | 8 |
Compliance
| RoHS | No |
| Eccn Code | EAR99 |
| Lead Free | No |
| HTS Code | 8473.30.11.80 |
| REACH | not_compliant |
| Military Spec | False |
Datasheet
Maxim DS1553WP-120 Datasheet
Download the complete datasheet for Maxim DS1553WP-120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
