Digital temperature sensor IC with a 12-bit resolution, offering a wide operating temperature range from -55°C to +125°C. Features a logic interface and digital output, operating with a supply voltage between 2.7V and 5.5V. Packaged in a PDIP with dimensions of 9.91mm length, 7.87mm width, and 4.45mm height. This component is RoHS compliant and designed for general environmental sensing applications.
PackagePDIP
Quick Jump:
Technical Specifications
Maxim DS1620+ technical specifications.
General
| Package/Case | PDIP |
| Height | 4.45mm |
| Interface | Logic |
| Lead Free | Lead Free |
| Length | 9.91mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 12 |
| Operating Supply Current | 1mA |
| Output Type | Digital |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resolution | 9b |
| RoHS Compliant | Yes |
| Width | 7.87mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1620+ Datasheet
Download the complete datasheet for Maxim DS1620+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

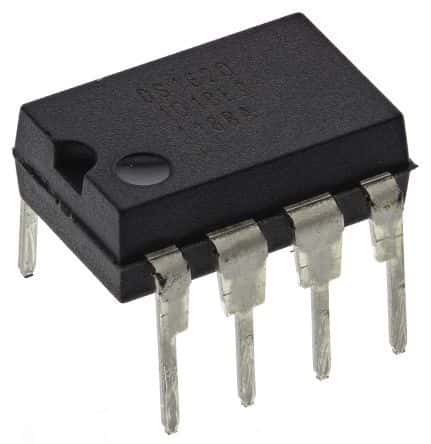

Product Images
