Dual logarithmic taper digital potentiometer IC featuring 64 positions and 65 taps, offering a total resistance of 45kΩ with a 20% tolerance. Operates from a 2.7V to 5.5V supply voltage, consuming 50µA of supply current. Controlled via a serial interface, this component is housed in a 14-pin PDIP package with dimensions of 19.43mm length, 7.87mm width, and 4.45mm height. It is RoHS compliant and operates within a temperature range of -40°C to 85°C.
PackagePDIP
Current50uA
Resistance45kR
Quick Jump:
Technical Specifications
Maxim DS1801+ technical specifications.
General
| Package/Case | PDIP |
| Control Interface | SERIAL |
| Height | 4.45mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 19.43mm |
| Max Operating Temperature | 85°C |
| Memory Type | Volatile, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Circuits | 2 |
| Number of Positions | 64 |
| Number of Taps | 65 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 45kR |
| Resistance Tolerance | 20% |
| Resistor Type | Potentiometer |
| RoHS Compliant | Yes |
| Supply Current | 50uA |
| Taper | Logarithmic |
| Tolerance | 20% |
| Width | 7.87mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1801+ Datasheet
Download the complete datasheet for Maxim DS1801+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

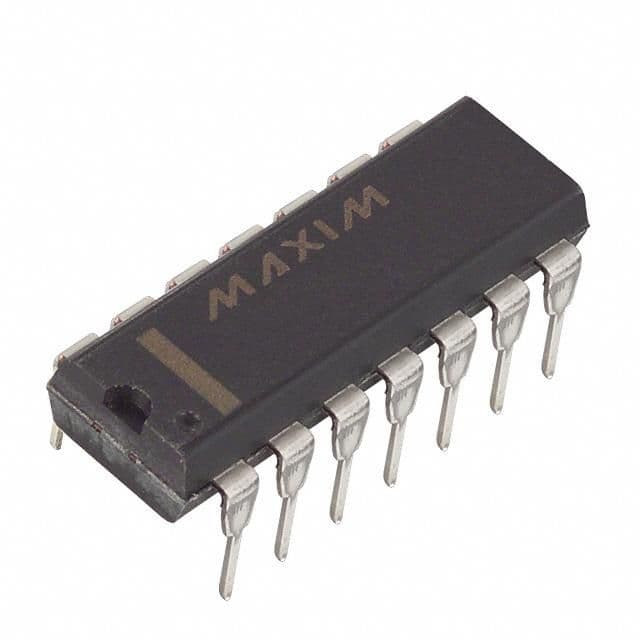

Product Images
