Dual 64-position digital potentiometer IC with 45kΩ resistance and 20% tolerance. Features a 3-wire serial interface and operates from a 2.7V to 5.5V supply. This volatile memory component offers two independent resistor networks and is housed in a PDIP package for through-hole termination. Suitable for applications requiring precise voltage division and control.
PackagePDIP
Current2mA
Resistance45kR
Quick Jump:
Technical Specifications
Maxim DS1802+ technical specifications.
General
| Package/Case | PDIP |
| Height | 4.45mm |
| Interface | Serial, 3-WIRE |
| Lead Free | Lead Free |
| Length | 26.54mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Volatile, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Positions | 64 |
| Number of Taps | 64 |
| Package Quantity | 18 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| Resistance | 45kR |
| Resistance Tolerance | 20% |
| Resistor Type | Potentiometer |
| RoHS Compliant | Yes |
| Series | DS1802 |
| Supply Current | 2mA |
| Termination | Through Hole |
| Tolerance | 20% |
| Width | 7.87mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1802+ Datasheet
Download the complete datasheet for Maxim DS1802+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

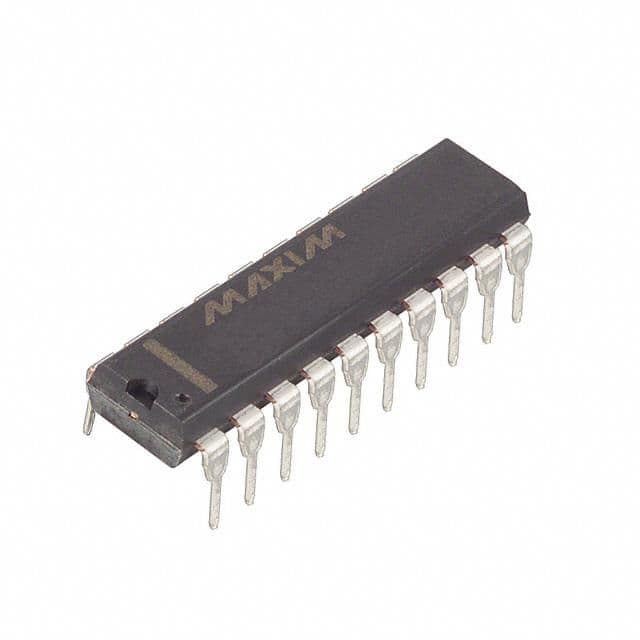

Product Images
