Dual-channel, volatile digital potentiometer with 256 positions and 100 kΩ resistance. Features a linear taper and 20% resistance tolerance. Operates from a 2.7V to 5.5V supply voltage with a typical 5V operating voltage. Controlled via a 2-wire serial interface, compatible with I2C. Packaged in PDIP with a maximum operating temperature of 85°C.
PackagePDIP
Current200uA
Resistance100kR
Quick Jump:
Technical Specifications
Maxim DS18030-100+ technical specifications.
General
| Package/Case | PDIP |
| Control Interface | SERIAL |
| Height | 4.45mm |
| Interface | I2C |
| Lead Free | Lead Free |
| Length | 19.43mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Volatile, |
| Min Supply Voltage | 2.7V |
| Number of Circuits | 2 |
| Number of Positions | 256 |
| Number of Taps | 256 |
| Operating Supply Voltage | 5V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 100kR |
| Resistance Tolerance | 20% |
| Resistor Type | Potentiometer |
| RoHS Compliant | Yes |
| Supply Current | 200uA |
| Taper | Linear |
| Tolerance | 20% |
| Width | 7.87mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS18030-100+ Datasheet
Download the complete datasheet for Maxim DS18030-100+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

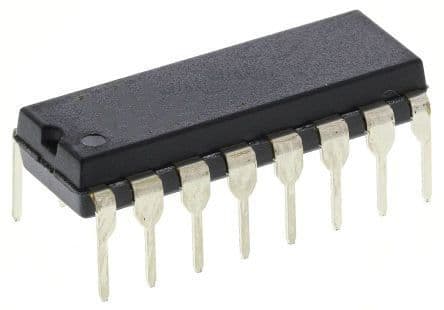

Product Images
