100-position, 100kR linear digital potentiometer with 20% resistance tolerance. Features non-volatile memory and an increment/decrement control interface. Operates from a 2.7V to 5.5V supply voltage with a maximum supply current of 400uA. Packaged in a DIP form factor, measuring 9.91mm in length, 7.87mm in width, and 4.45mm in height. Suitable for operation between -40°C and 85°C.
PackageDIP
Current400uA
Resistance100kR
Quick Jump:
Technical Specifications
Maxim DS1804-100+ technical specifications.
General
Package/Case
DIP
Control Interface
INCREMENT/DECREMENT
Height
4.45mm
Lead Free
Lead Free
Length
9.91mm
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Number of Circuits
1
Number of Positions
100
Number of Taps
100
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
100kR
Resistance Tolerance
20%
Resistor Type
Potentiometer
RoHS Compliant
Yes
Supply Current
400uA
Taper
Linear
Tolerance
20%
Width
7.87mm
Compliance
RoHS
Compliant
Datasheet
Maxim DS1804-100+ Datasheet
Download the complete datasheet for Maxim DS1804-100+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

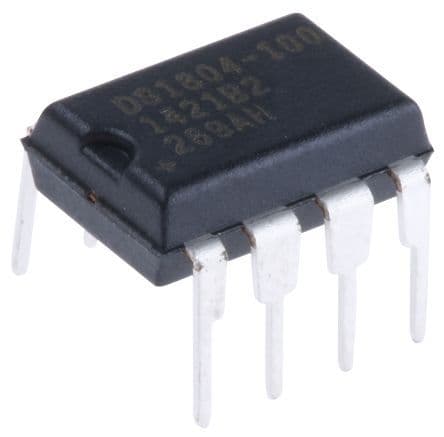

Product Images
