Maxim
DS1806E-010
Digital Potentiometer, 10000ohm, 3-wire Serial Control Interface, 64 Positions, PDSO20, 0.173 INCH, TSSOP-20
PackageTSSOP
Current1.3mA
Resistance10kR
Quick Jump:
Technical Specifications
Maxim DS1806E-010 technical specifications.
General
Package/Case
TSSOP
Height
0.9mm
Interface
Serial, 3-WIRE
Lead Free
Contains Lead
Length
6.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
Volatile,
Min Supply Voltage
2.7V
Number of Circuits
6
Number of Positions
64
Number of Taps
64
Package Quantity
74
Packaging
Rail/Tube
Radiation Hardening
No
Resistance
10kR
Resistor Type
Potentiometer
RoHS Compliant
No
Supply Current
1.3mA
Taper
Linear
Tolerance
20%
Width
4.4mm
Compliance
RoHS
Not CompliantNo
Datasheet
Maxim DS1806E-010 Datasheet
Download the complete datasheet for Maxim DS1806E-010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

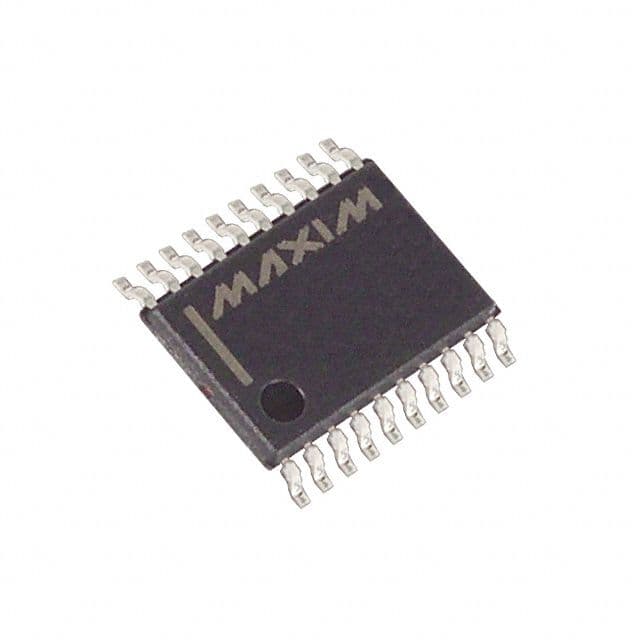

Product Images
