Maxim
DS1807+
MAXIM INTEGRATED PRODUCTS DS1807+ Volatile Digital Potentiometer, 45 kohm, Dual, 2 Wire, Serial, Logarithmic, 2.7 V
PackagePDIP
Current40uA
Resistance45kR
Quick Jump:
Technical Specifications
Maxim DS1807+ technical specifications.
General
Package/Case
PDIP
Control Interface
SERIAL
Interface
I2C
Lead Free
Lead Free
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Type
Volatile,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Number of Circuits
2
Number of Positions
64
Number of Taps
65
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
45kR
Resistance Tolerance
20%
Resistor Type
Potentiometer
RoHS Compliant
Yes
Supply Current
40uA
Taper
Logarithmic
Tolerance
20%
Compliance
RoHS
Compliant
Datasheet
Maxim DS1807+ Datasheet
Download the complete datasheet for Maxim DS1807+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

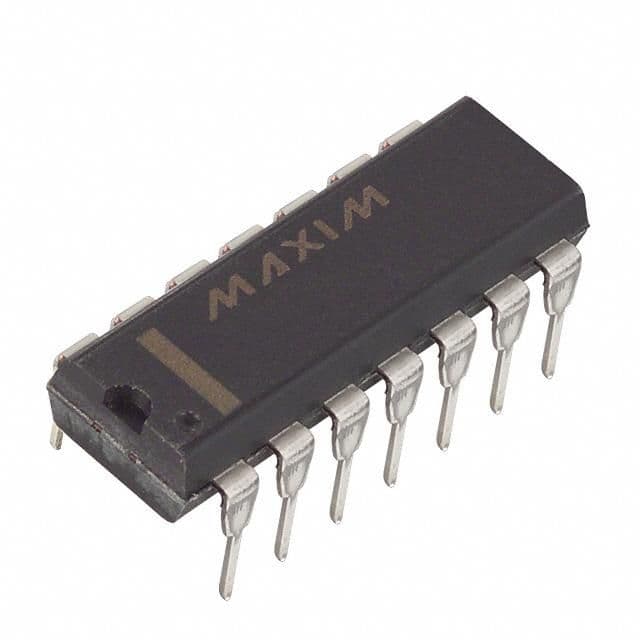

Product Images
