Digital Potentiometer IC, 10kR resistance with 20% tolerance, featuring a linear taper and 64 positions/taps. Operates within a 4.5V to 5.5V supply voltage range, with a quiescent current of 500uA. Encased in an 8-pin PDIP package, this non-volatile memory component is RoHS compliant and suitable for operation between -40°C and 85°C.
PackagePDIP
Current500uA
Resistance10kR
Quick Jump:
Technical Specifications
Maxim DS1809-010+ technical specifications.
General
Package/Case
PDIP
Height
4.45mm
Lead Free
Lead Free
Length
9.91mm
Max Operating Temperature
85°C
Memory Type
Non-Volatile,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Number of Circuits
1
Number of Positions
64
Number of Taps
64
Package Quantity
50
Packaging
Rail/Tube
Quiescent Current
500uA
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
10kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Series
Dallastat™
Supply Current
500uA
Taper
Linear
Tolerance
20%
Width
7.87mm
Compliance
RoHS
Compliant
Datasheet
Maxim DS1809-010+ Datasheet
Download the complete datasheet for Maxim DS1809-010+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

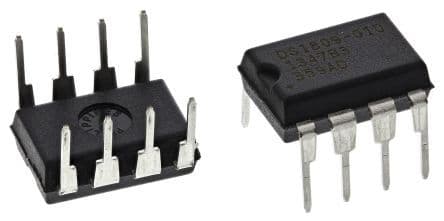

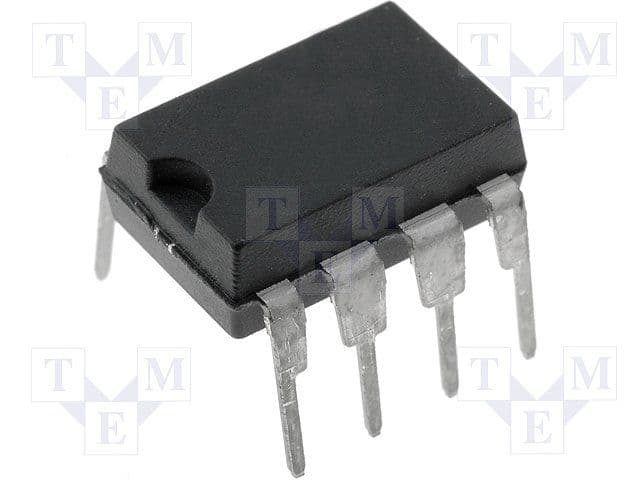

Product Images
