Supervisory circuit with pushbutton reset functionality. Monitors a single voltage with a reset threshold between 4.25V and 4.49V. Features an active-low reset output and a 100ms reset timeout. Operates from 0V to 5.5V supply voltage with a maximum supply current of 40uA. Packaged in a TO-92-3 through-hole mount.
PackageTO-92-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1813-10+ technical specifications.
General
| Package/Case | TO-92-3 |
| Height | 4.95mm |
| Length | 4.95mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 4.49V |
| Min Reset Threshold Voltage | 4.25V |
| Max Supply Current | 40uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 0V |
| Mount | Through Hole |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 40uA |
| Output Voltage | 5V |
| Overvoltage Threshold | 4.49V |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 100ms |
| RoHS Compliant | Yes |
| Series | EconoReset |
| Threshold Voltage | 4.35V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 4.25V |
| Watchdog Timer | No |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1813-10+ Datasheet
Download the complete datasheet for Maxim DS1813-10+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

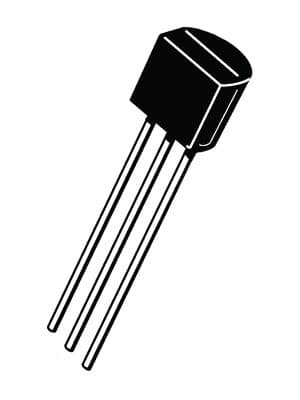

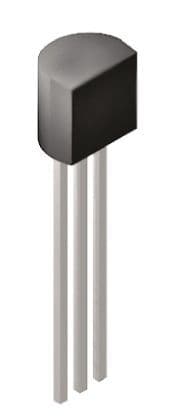

Product Images
