Quad digital potentiometer IC featuring 64 positions and 100kΩ resistance with 20% tolerance. Operates with a 2.7V to 5.5V supply voltage and a linear taper. Controlled via a serial interface supporting I2C and 2-wire protocols. Packaged in a 20-pin DIP for through-hole mounting.
PackageDIP
Current2.5mA
Resistance100kR
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1844-100+ technical specifications.
General
| Package/Case | DIP |
| Control Interface | SERIAL |
| Interface | I2C, Serial, 2-Wire, 5-WIRE |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Volatile, |
| Min Supply Voltage | 2.7V |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Positions | 64 |
| Number of Taps | 64 |
| Operating Supply Voltage | 5V |
| Package Quantity | 18 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 100kR |
| Resistance Tolerance | 20% |
| Resistor Type | Potentiometer |
| RoHS Compliant | Yes |
| Supply Current | 2.5mA |
| Taper | Linear |
| Tolerance | 20% |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1844-100+ Datasheet
Download the complete datasheet for Maxim DS1844-100+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

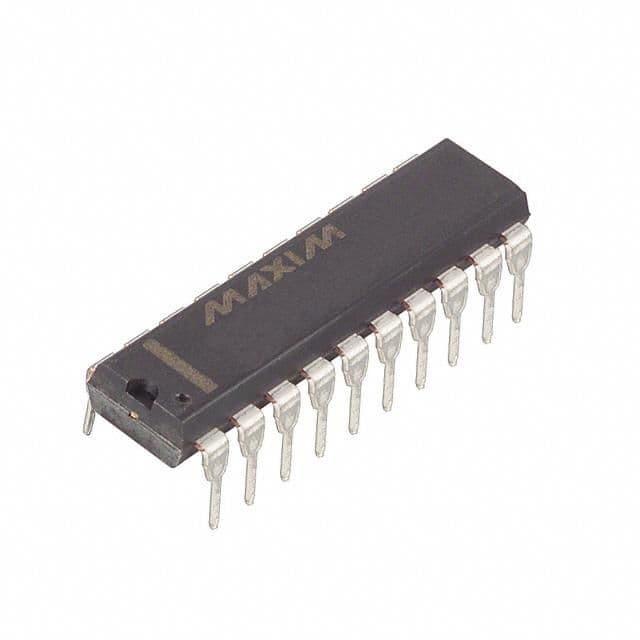

Product Images
