12-bit digital thermometer with programmable resolution, offering 0.5°C accuracy. This temperature sensor features a 1-Wire serial interface and operates within a 3V to 5.5V supply voltage range. Packaged in a TO-92-3 through-hole mount, it supports a wide operating temperature range from -55°C to 125°C.
PackageTO-92-3
Current1mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Maxim DS18B20+ technical specifications.
General
| Package/Case | TO-92-3 |
| Height | 4.95mm |
| Interface | 1-WIRE, Serial |
| Lead Free | Lead Free |
| Length | 4.95mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 3V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Through Hole, PCB |
| Number of Bits | 12 |
| Operating Supply Current | 1.5mA |
| Output Current | 4mA |
| Output Type | Digital, Voltage |
| Package Quantity | 10 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sensor Type | Temperature |
| Supply Current | 1mA |
| Termination | SMD/SMT |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS18B20+ Datasheet
Download the complete datasheet for Maxim DS18B20+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

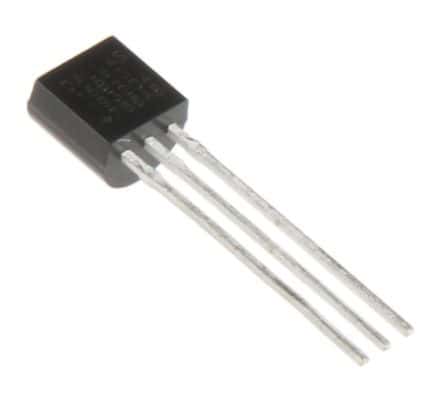

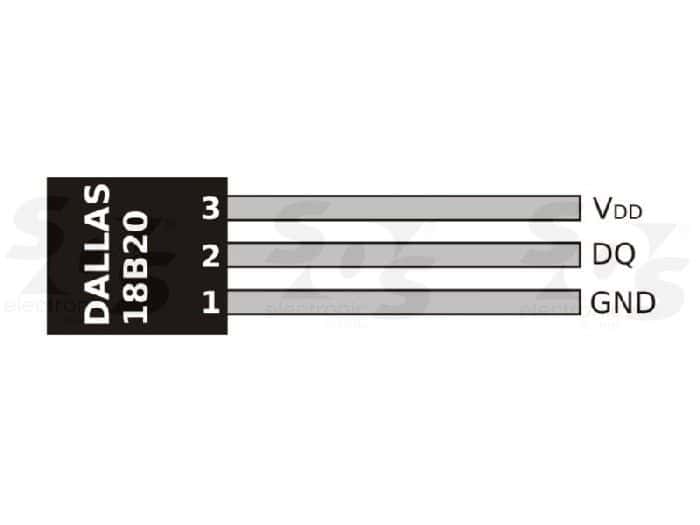

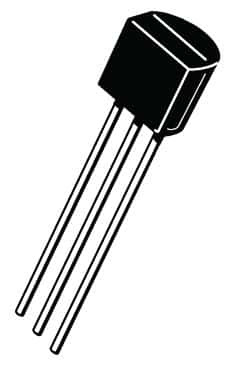

Product Images
