1-Channel Line Interface Unit (LIU) supporting 2.048Mbps E1/J1/T1 interfaces with short/long haul capabilities. Features parallel and serial interface options, operating from a 3.3V supply voltage (3.135V to 3.465V) with a maximum supply current of 100mA. Packaged in a 44-pin TQFP (10mm x 10mm x 1.05mm) for surface mount applications. RoHS compliant with a temperature range of -40°C to 85°C.
PackageTQFP
Current66mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim DS21348TN+ technical specifications.
General
| Package/Case | TQFP |
| Height | 1.05mm |
| Interface | Serial, Parallel |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 100mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 160 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 66mA |
| Termination | SMD/SMT |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS21348TN+ Datasheet
Download the complete datasheet for Maxim DS21348TN+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

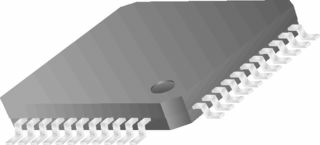

Product Images
